Regendieb Original Selfcleaning Rainwater Filter and Rain Diverter - downpipes

colour

£69.00

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

This is the Graf (Garantia) Regendieb (Rain thief) Self cleaning circular downpipe filter which showcases simple and innovative German design.

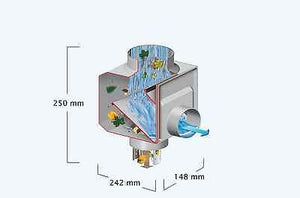

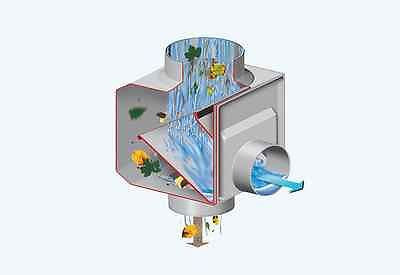

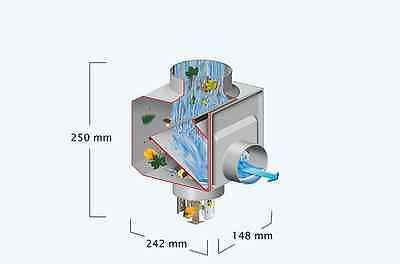

This represents a step change in rainwater harvesting diverters since the diverter filters leaves and other contaminants whilst capturing the majority of rainwater. This principle is shown in image 2.

The housing top (image 4) has an easy cut lid with precut grooves which can be cut to standard pipe dimensions (square and circular).

Technical Specification:

Highest water-quality - reliably filters leaves and moss out of the rainwater
Self-cleaning downpipe filter with stainless steel fine filter

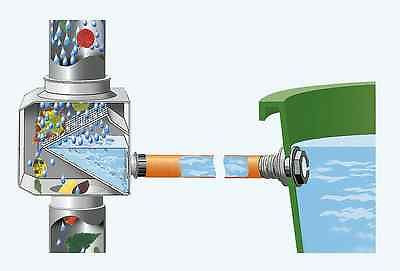

Fills the rainwater tank and prevents full rainwater storage tank from overflowing
Can be easily switched from summer to winter use by turning over the filter insert
Downpipe sizes 7-10 cm
High water yield (approx. 90%)
inlet seal DN 19/32 suitable for all above ground tanks
roof area max 200 m²

The standard kit includes an outlet reducer and tank connection grommet.

To extend the outlet a 1 1/4" female hosetail (with additional 1 1/4" hose and tank connector) can be used.

For a higher flow capacity outlet consider the Freeflush high flow diverter - tank linking kit to maximise the potential of the diverter.

Why we like this product at freeflush?

Self cleaning capability gets the thumbs up!

Near 100 % efficiency capacity get the thumbs up!

Accepts UK fittings.

Fine STEEL mesh filter.

Check out our downpipe comparison table here.

Product Drawing

Installation Guide

If your query is related to an existing order please email in with your order number in the subject line. If you have a new residential enquiry please consult the online guides before calling as they may answer your question.

The delivery information page is divided into 1. Specific and 2. General delivery information below.

1. Specific Delivery Information relating to product lines

Small items dispatched daily with RM24 ~85% arriving next day
Large items (UK made) typically 5 - 15 working days (Parcelforce/APC etc)

The following items have a 2-4 week lead time:

1,000 litre compact underground rainwater tank
250 litre Prestige large Plant Pot style planter Grey
SAR40-TOP2 Wastewater Lifting station
Madison 185 Litre rain barrel

The following items (EU) are purchased on a pre order basis with a potential 4-8 weeks lead time:

Hydraloop
Green Roof sedum tray - pre planted option
Madison 185 Litre rain barrel - Millstone

The following items (EU) are purchased on a pre order basis with a potential 10-12 week lead time:

2. General Delivery information

We're a Manchester based company and ship to the UK at our standard rates. Please get in touch requesting the delivery surcharge value if you are based in the Highlands or a UK island.

We no longer support ordering from the EU and Northern Ireland through the website. We can support ad hoc orders with limited liability.

Our design and Prestige range is available in the Netherlands, Ireland, Belgium, France, Germany, through our distributors.

Stock items will be dispatched on the day of order, if ordered before 1pm.

Letters are sent 1st class.

Parcels <2kg are shipped with Royal Mail 24 Tracked with the following target delivery times.

Guaranteed delivery can be arranged by advance agreement. This agreement is back to back with the courier and we will not be liable for any delays as per our terms.

A loss/replacement can only be pursued in line with the target delivery times of the courier or once the courier accept loss.

Bulky items (and pallet deliveries) are dispatched within 2-15 working days. We will request a contact number if this has not been provided at checkout.

Some items are made to order (bespoke) and details are given on the listing for dispatch times. If for any reason we anticipate a delay on our normal dispatch time we will contact you to let you know.

Occasionally there are delays. We shall not be liable for any direct or indirect losses, costs, damages or expenses incurred by you or any other person for any delays in delivery.

Missed deliveries where attempted delivery has been made usually result in re-deliveries the following day. The customer is responsible for organising re deliveries by contacting the courier direct.

Parcels/deliveries can only be "left out" if the delivering company allows that option. Parcelforce, for example, do not allow a parcel to be "left out".

We are an environment centric business and as such we try to minimise our waste. Our packaging is usually recycled and/or recyclable and we make efficient use of packaging to minimise wastage.

Covid delivery updates between 12.3.20 and 11.1.21 21 have been archived here.

Perfect, it saves cleaning

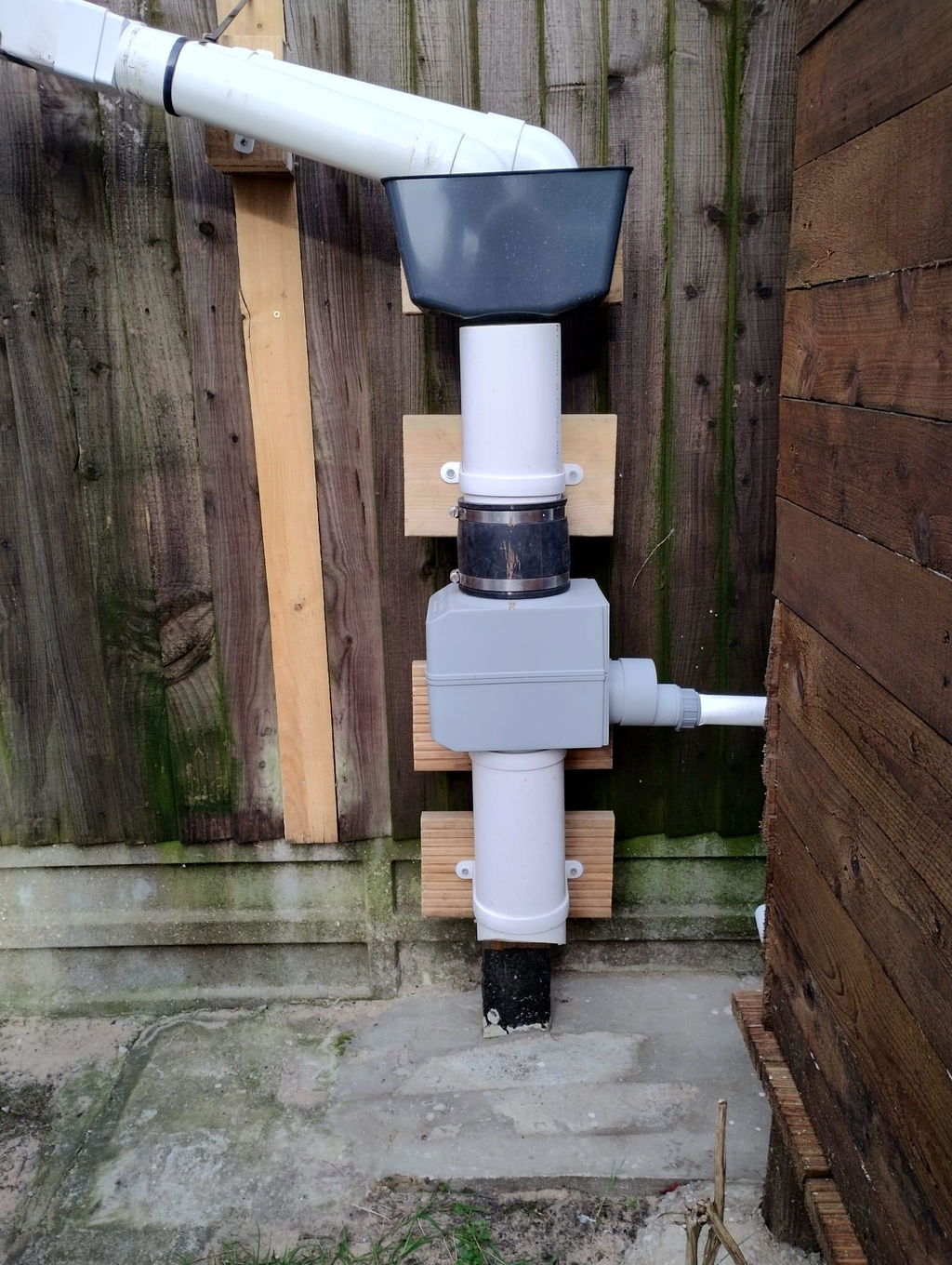

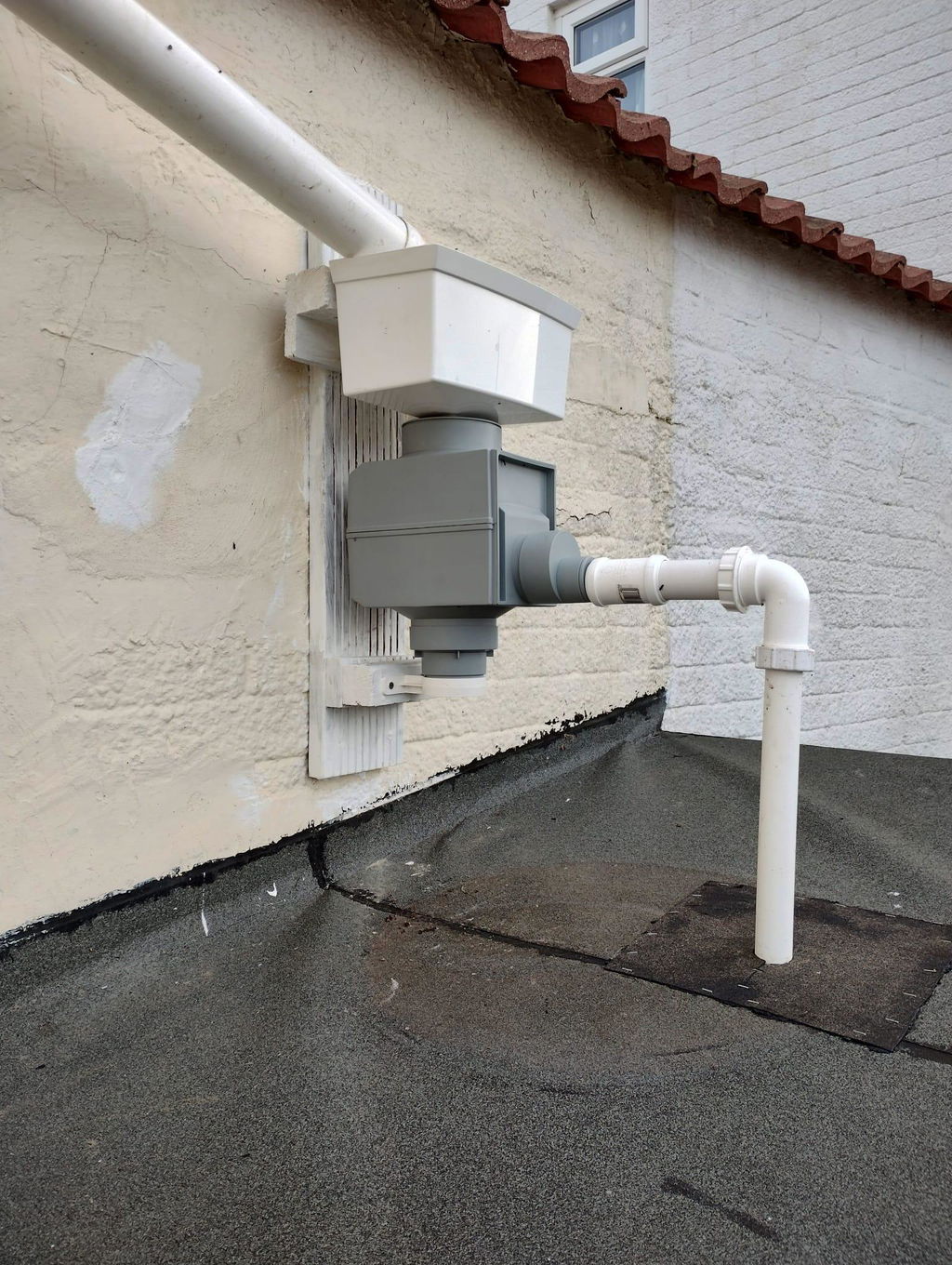

I loved it so much I bought another one, yes it may seem expensive and yes if you do diy you could probably know one up in a day, however it works great. I've now got 2 for rain water harvesting. I love the fact it comes with various connection collars/adaptors which i have modified to my own needs (see photo's).
