Vortiflo Complete Vortex Flow Control Chamber 1050mm

£2,749.00
Maximum quantity available reached.

The new VORTIFLO 1050mm Flow Control Chamber range features the innovative new FlowBrake® Maxi - Vortex flow control, which is integrated into the outlet manifold of the chamber.

The outlet manifold is also fitted with a Ø110mm overflow pipe, designed to operate in the unlikely event of blockage.

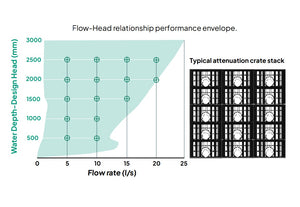

The Flow Brake Maxi has been meticulously designed so that this single model will offer a vast range of precise flow discharge rates, from as low as 0.2 litres per second and up to 25 litres per second, with design heads typically but not limited to 3 meters.

The tapered inlet and outlet arrangement can be cut to required size, allowing for a vast array of design head - discharge curves to be achieved with this single device

*This is not supplied with an access cover*

Specification

All chambers are manufactured from high density polyethylene- twinwall pipe, which makes the chambers extremely robust. The range comes in four depths.

Main Channel Pipework: 110mm or 160mm Single wall EN 1401 or 150mm or 225mm or 300mm Twinwall - Outlet at 0° and Inlet between 90° and 270°Optional Side

Inlets Pipework: 110mm or 160mm Single wall EN 1401 or 150mm or 225mm or 300mm Twinwall - Inlets between 90° and 270° dependent to orientation

Ladders can also be fitted if required, at extra cost.

What information do we need to design your Vortiflo chamber?

  1. The Design Flow - Maximum Discharge
  2. The Design Head - Invert to Top Water Level
  3. Pipework sizes and configurations
  4. Invert Depths
Optional Accessories

Dimensions

Product Code Main pipework options Ø
(mm)
Optional Inlets Ø
(mm)
Overall Depth (A)
(mm)
Inlet Invert (B)
(mm)
Outlet Invert (C)
(mm)
Sump Depth (D)
(mm)
VFBCC1050300F/1.5 110 - 300 110 - 300 1535 1075 1165 355
VFBCC1050300F/2 110 - 300 110 - 300 1975 1515 1605 355
VFBCC1050300F/2.4 110 - 300 110 - 300 2395 1935 2025 355
VFBCC1050300F/3 110 - 300 110 - 300 2915 2455 2545 355
O =Overflow dimension factory fitted to be 100mm above the top water level or head



Guidance Documents

The FlowBrake maxi meets the criteria of the following SuDS design documents

  • BS 8582 9.6
  • CIRIA 753 10.2, 20.5

The FlowBrake Maxi has a minimum opening of 40mm which is considered suitable where upstream blockage prevention is in place

Please get in touch to request the QH curves for your design point
