Universal Filter 3 external suitable for pedestrian and vehicle loading

£449.00
Maximum quantity available reached.
For the majority of SuDS and rainwater applications pre filtration is required to remove silt and organic matter from the system to prevent blockage and poor performance.

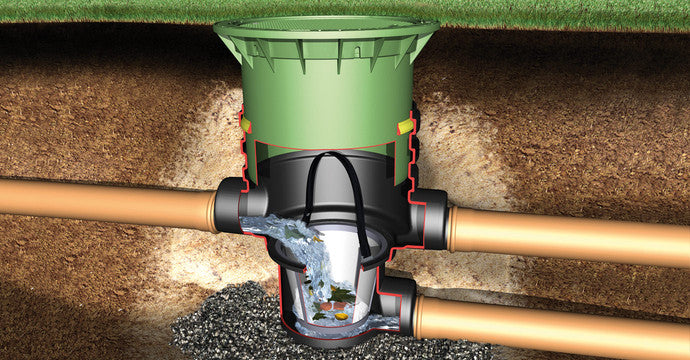

  • External filter to clean the rainwater before the tank
  • Available for pedestrian loading and for vehicle loading
  • 100 % water yield: therefore, ideal for smaller roof areas
  • Filter insert mesh width 0.35 mm (0.01")
  • Continuously variable installation depth of 600 - 1,050 mm (22.4 - 41.3") using the telescopic dome shaft
  • Lockable, childproof cover
  • Flush with ground level
  • Minimal height offset (270 mm / 10.6") between the inlet and outlet
  • Also suitable for infiltration and pond systems
  • Maximum roof surface area of 350 m² with connections DN 100 and 500 m² with DN 150

Universal-Filter 3 external, suitable for pedestrian loading

order no.

Length (mm) Ø max. (mm) Height (mm) Weight (kg)
340051 1050 550 760 13

There is no additional documentation for this product
