Silt Guard SiltBlok 300 Series for 110mm & 160mm pipework

£609.00
Maximum quantity available reached.

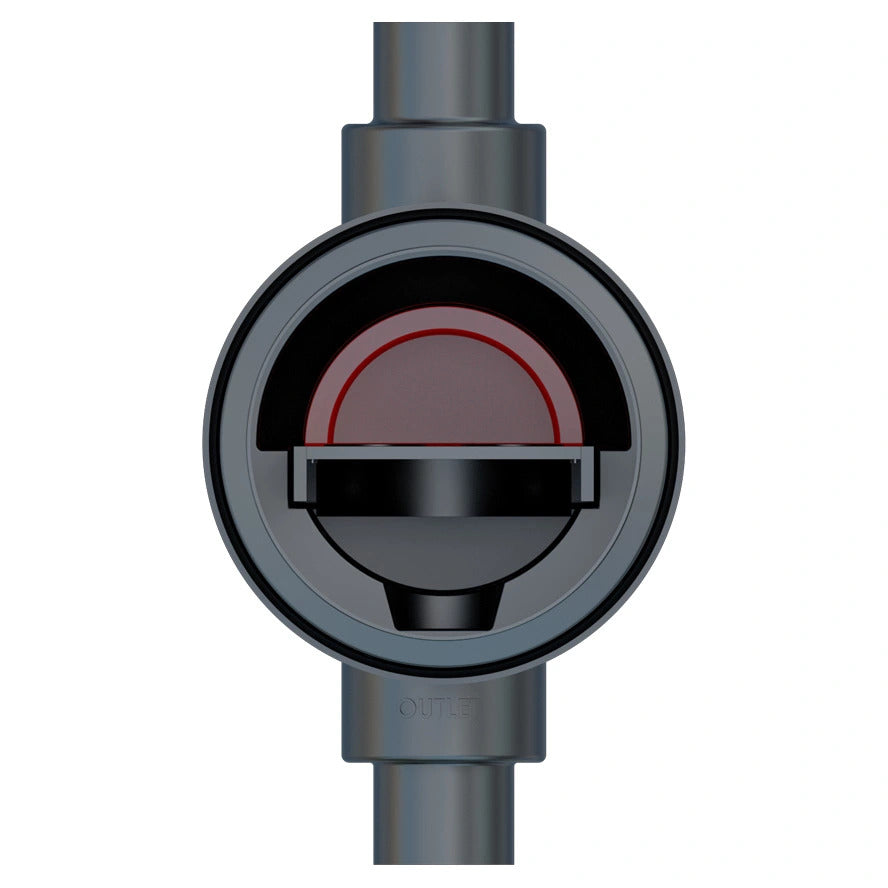

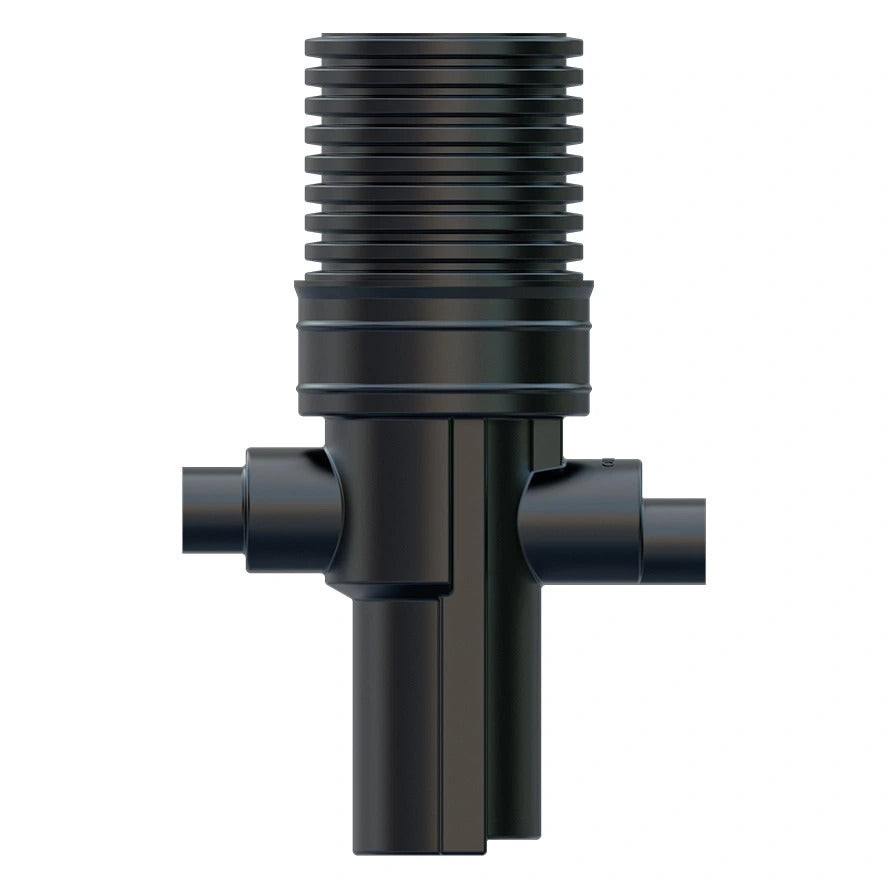

The SILTBLOK SB300B is a compact silt trap designed to provide effective filtration and hydraulic control in smaller surface water management systems. The unit features a Ø300mm rotationally moulded chamber base, accommodating 110mm or 160mm EN 1401 main channel connections.

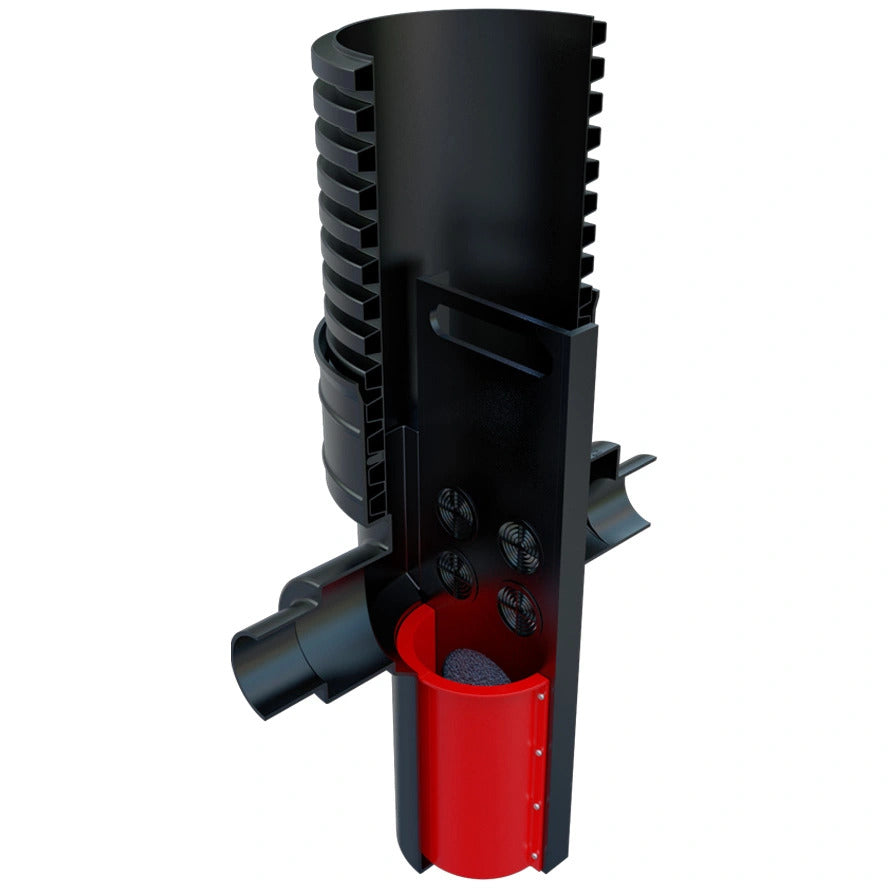

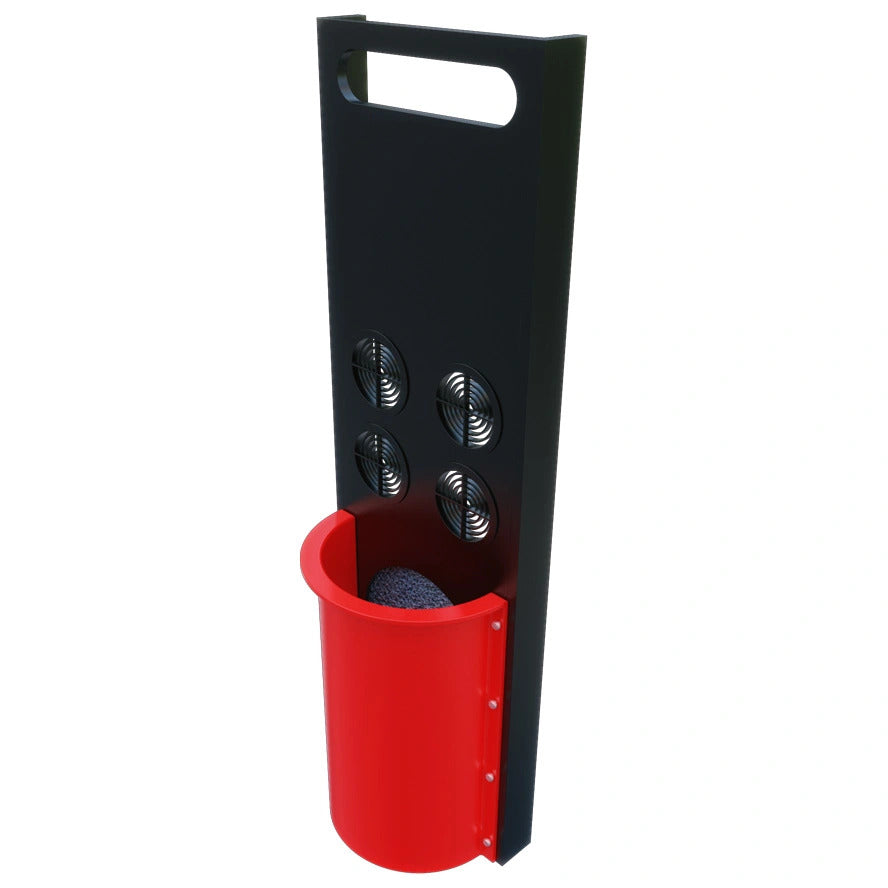

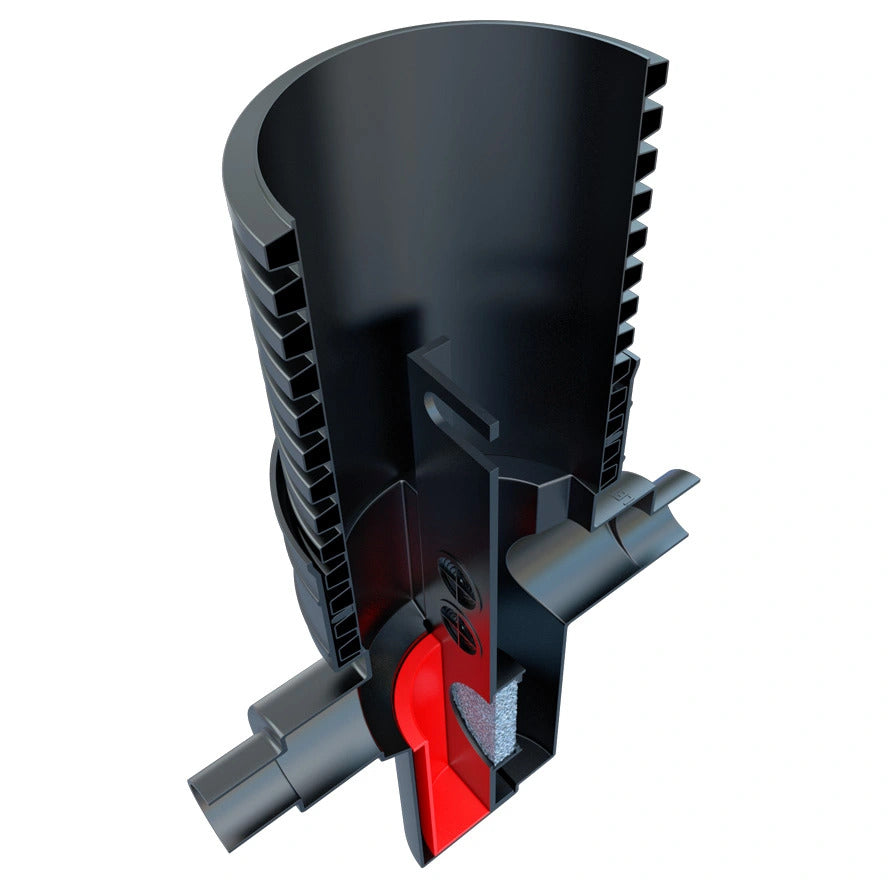

At the core of the SB300B lies a central barrier plate integrated with the BLOK filter, which forces all flow through the filtration system to remove suspended solids and silt particles as fine as 30 microns (0.03mm). Attached to the inlet side is a fully removable silt basket with a 5.5kg total capacity, offering generous storage and easy maintenance.

The SB300B is available in two standard shaft depth options 990mm and 1500mm providing flexibility to suit a wide range of installation depths and drainage layouts.

The SB300 model is supplied with a square section EN 124 - A15 loading- screwed access cover.

Pipework

  • Main Channel Pipework: Ø110mm or Ø160mm EN1401

Dimensions

Product Code Pipework
Options Ø (mm) 		Depth
A
(mm) 		Inlet Invert
B1
(mm) 		Inlet Invert
B2
(mm) 		Approx.
Weight
(Kg)
SB300B/1 110 - 160 965 600 575 11
SB300B/1.5 110 - 160 1465 1100 1075 16.5
