Silt Guard 500 Series Silt Trap for 160-225mm Pipework with Filter Bucket and Access Cover

£709.00
Maximum quantity available reached.

The Silt Guard Range has been designed for the catchment and removal of silt and debris from the run off from impermeable and hard standing surface areas, such as: roofs, path and driveways, patios, car parks, roads and highways. Installation of a Silt Guard as part of a SuDS design, will provide effective primary treatment for the surface water run off, improving water quality downstream and in turn, helping prevent flooding.

The SS500 Range is designed for installation upstream of medium to large volume, cellular/crate – attenuation systems, ponds, swales and irrigation systems.

525mm diameter, factory built unit, delivered to site ready to install. Featuring a robust, impact resistant, rota moulded body with moulded pipe spigots that accommodate 160mm EN 1401 pipe fittings.

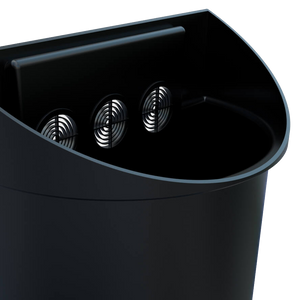

Integrally there is a removable silt basket under the inlet. The basket has a moulded handle /grip and is fitted with three circular screens, the screens help remove debris that may enter the unit. The filter basket is 25 kilos full, so is still a single person lift .

This unit comes with an A15 loading - circular access cover as standard. The unit depth can be increased by use of extension risers - Product Code 500ER (Detailed opposite).

Pipework

  • Inlet pipework – 160mm EN 1401 spigot & 225mm twinwall
  • Outlet pipework – 160mm EN 1401 spigot & 225mm twinwall

Features and Benefits

  • Single piece units, delivered ready to install, reducing installation time and costs
  • Offers significant onsite savings against PCC and other traditional construction methods, as they need no construction or wet trades
  • Eliminates wastage associated with in-situ construction
  • Robust, chemical resistant - rota moulded body
  • Pipework - moulded 160mm EN 1401 spigots with option of 225mm twinwall
  • Removable filter basket with integrated debris screens
  • Basket full -25 kg, allowing a single person lift
  • Optional extension risers, offers deeper inverts to suit project requirements - effective height 235mm
  • Supplied with A15 loading circular access cover
  • Simple maintenance
  • Manufactured in the UK

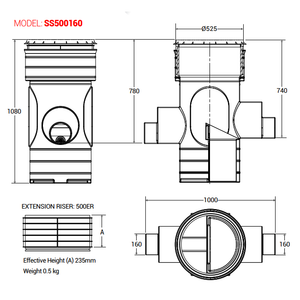

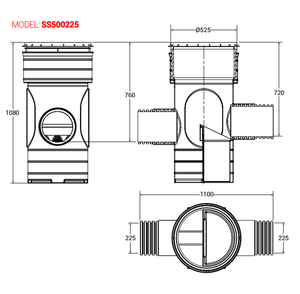

    Dimensions

    Product Code Working Capacity (L) Basket Capacity (L) Inlet Pipework
    (mm)     		Outlet Pipework
    (mm)     		Overall Depth
    (mm)     		Inlet Invert
    (mm)
    SS500160 60 23.5 160 160 1080 740
    SS500225 60 23.5 225 225 1080 720
