Silt Guard 300 Series Silt Trap for 110 and 160mm Pipework with Filter Bucket and Access Cover
The Silt Guard range has been designed for the catchment and removal of silt and debris from the run off from impermeable and hard standing surface areas, such as: roofs, path and driveways, patios, car parks, roads and highways.
Installation of a Silt Guard as part of a SuDS design, will provide effective primary treatment for the surface water run off, improving water quality downstream and improving and increasing the sustainability of downstream attenuation systems.
Application
The SS300160 standard model is designed for installation upstream of smaller volume, cellular/crate–attenuation systems. The unit can be extended by use of extension risers. For inverts over 600mm or for trafficked areas we suggest the installation of our SS300160HD – Heavy Duty model.
Function
The sump of the chamber provides a stilling basin in which particles with a specific gravity greater than water, ie silt, will settle out into the bucket. Floating debris is prevented from exiting the chamber via the high level 2.5mm alloy filter.
Accessories
Specification
300mm diameter, factory built unit, delivered to site ready to install. Featuring a robust, impact resistant, rota moulded base with four moulded pipe spigots that accommodate 110 & 160mm EN 1401 pipe fittings.
All spigots have blind ends, that can be cut off on site if required. The main outlet also has the option of a 150mm twinwall pipe connection (please get in touch if this is required prior to purchase).
Integrally there is a filter basket with an alloy filter screen fitted, this screen enhances the retention and separation of silt and removes any debris that enters the unit. The filter basket also features a telescopic stainless steel handle, which is ergonomically designed to aid lifting.
This unit comes complete with an EN124-A15 loading – circular access cover as standard. With the option of a square section EN124-A15 access cover.
Pipework
- Main inlet – 110/160mm EN 1401 spigot
- Side inlets – 2x 100mm EN 1401 spigot
- Outlet – 110/160mm EN 1401 spigot and 150mm twinwall
Key features
- Single piece unit, delivered ready to install, reducing installation time and costs
- Rota Moulded LLDPE base - chemical and impact resistant
- Quick and easy installation
- Robust, chemical resistant - rota moulded body
- Option of Ø110 or Ø160mm - EN 1401 pipe connections
- 300mm sump depth
- Removable filter basket with an ergonomically designed telescopic lifting handle
- Filter basket has an alloy filter screen fitted, providing more efficient separation
- Basket full - 18 kg, allowing a single person lift
- Simple maintenance

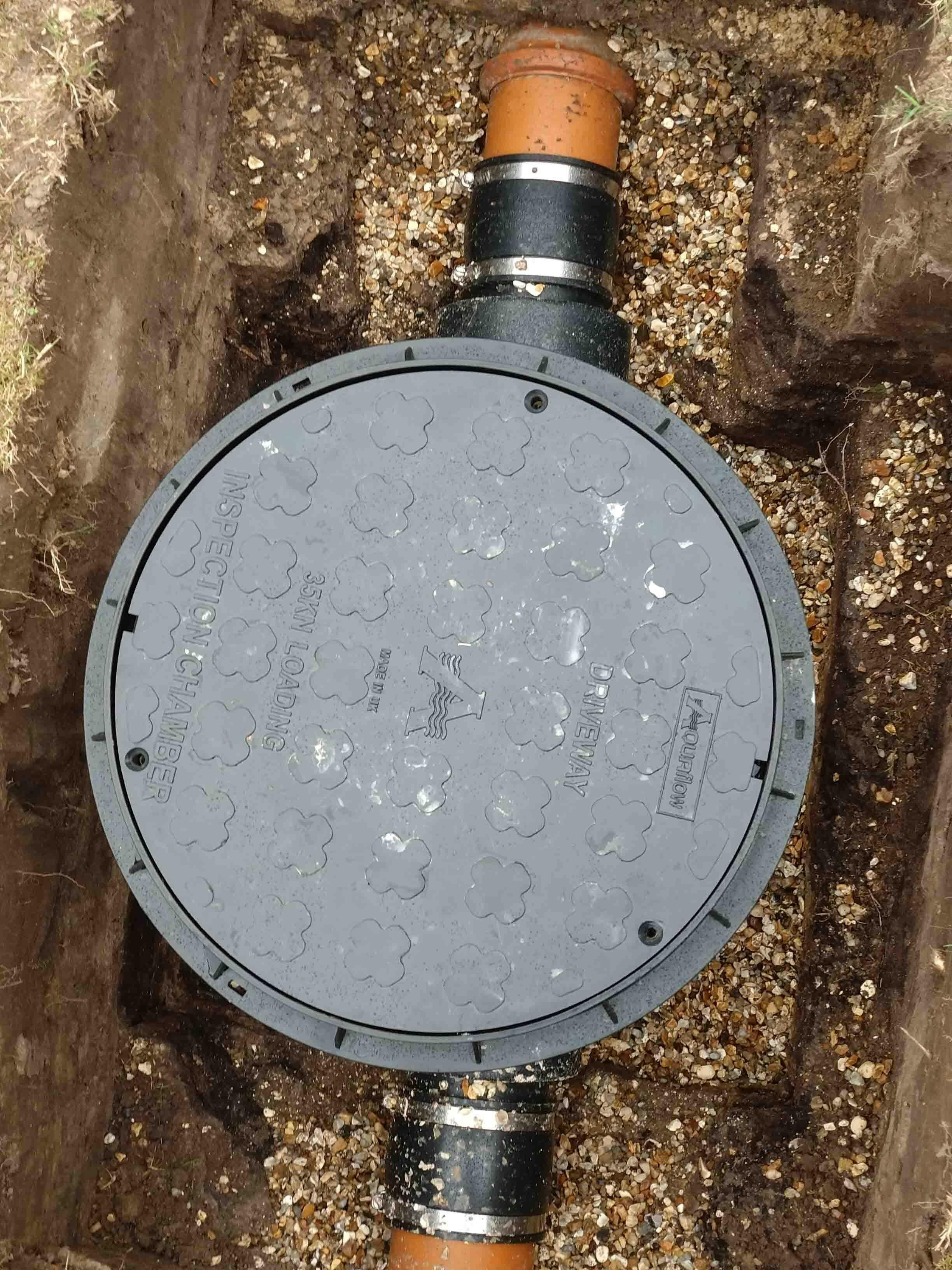

- Can be installed in granular surround
