Water butt connector - Quattro rainwater downpipe self cleaning filter

Colour

£20.99

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

This self cleaning downpipe filter showcases simple and innovative German design.

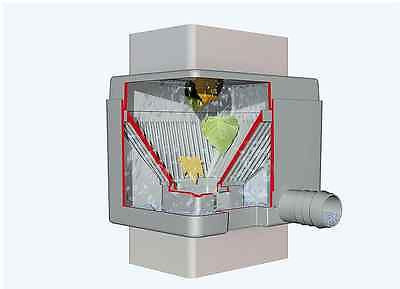

This represents a step change in rainwater harvesting diverters since the diverter filters leaves and other contaminants whilst capturing the majority of rainwater. This principle is shown in image 2.

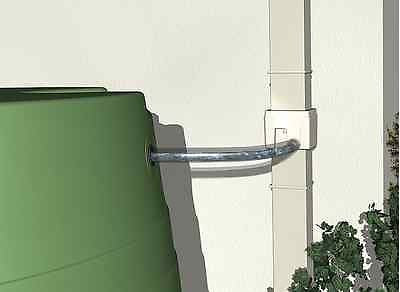

This model also comes with the linking kit (Image 5) which includes a tank connector and a solid 30 cm piece of hose.

Technical Specification:

Suitable for UK square downpipes (65mm)
Also suitable for square pipe sizes 70-100mm
Easy to switch from summer to winter operation
High water yield (approx. 90 %)
1" outer diameter spigot
If extra hose is required, please order 1" hose
With internal sieve
Max. roof area 50 m²

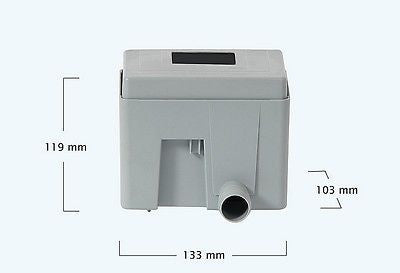

Measurements (L x W x H): 103 x 133 x 119 mm)

Why we like this product at freeflush?

Self cleaning capability gets the thumbs up!

If you require higher levels of filtration (800microns) or circular water butt connectors please see our other Diverts and Filters.

If you need some help with picking the right filter for you, check out our comparison table here.

Fitting Instructions
