A high-water alarm is supplied as standard. The pumping station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements. This system also comes with guide rail and pedestal kit for easy pump access. The station is designed to pump through a 63mm pump main as the chamber’s outlet terminates in a 2” male BSP thread.
- Cast Iron/ Stainless Steel Construction
- 50mm (2') Solids Handling Capacity
- Coolant Filled Motor
- Mechanical Seal
- 10M cable
- Max 6 M Lift (10 M for Twin)
- Max Flow 5 L/Sec
- Float Switch as Standard
- Polyethylene tank
- Capacity 800l, 1200l, 1700l
- 1 x 110mm/160mm Inlet Seal to allow Inlet to be Drilled on site
- 100mm Cable Duct
- 2" Internal Pipe Work
- 2" Non-Return Valve
- 2" Quick release Coupling
- Evak 50mm solids sewage pump

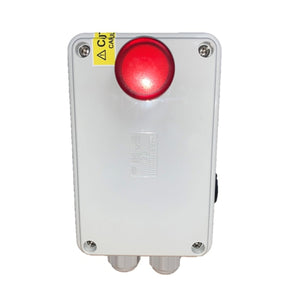

- A high-water alarm is supplied as standard as part of the control panel
- 450mm dia Pedestrian rated cover (double seal)
- Soft close Non return valve
- Internal PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
- Single or twin pump
- Storage requirement: 800 litres, 1200 litres, 1700 litres
|Capacity (L)||Ø (mm)||Depth (mm)|
