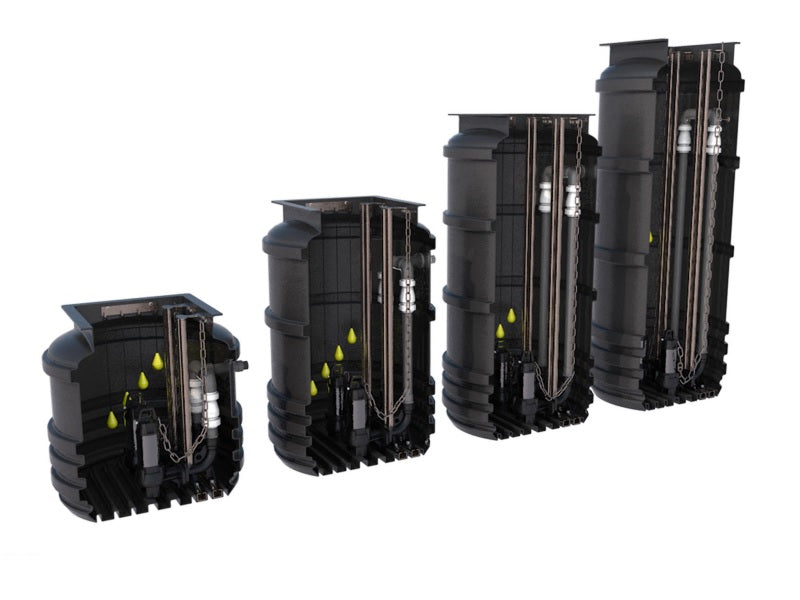

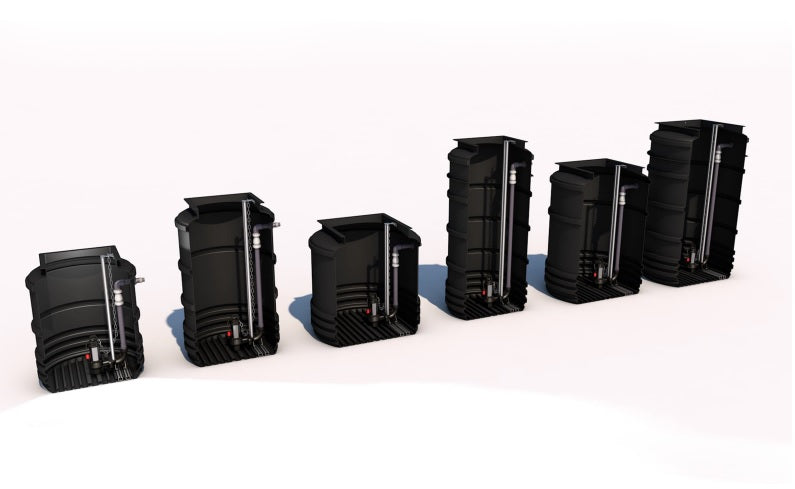

The Maxi Series of package pump stations are designed to collect surface water from large properties or buildings with expansive surface areas such as commercial offices and other industrial sized commercial applications.
The Maxi Range has been designed to ensure an easy and trouble free installation and is manufactured in high grade HDPE.
The Maxi Range of pump stations are delivered to site as a complete package, including all internal pipework, a single or twin sewage pump and alternating control panel and float switches.
This system also comes with guide rail and pedestal kit for easy pump access. The station is designed to pump through a 63mm pump main as the chamber’s outlet terminates in a 2” male BSP thread as standard.
The Maxi Range pump station allows multiple 110mm inlet (to be drilled on site) to enable a quick and easy installation.
For detailed instructions for wiring and installation please review the installation manual.

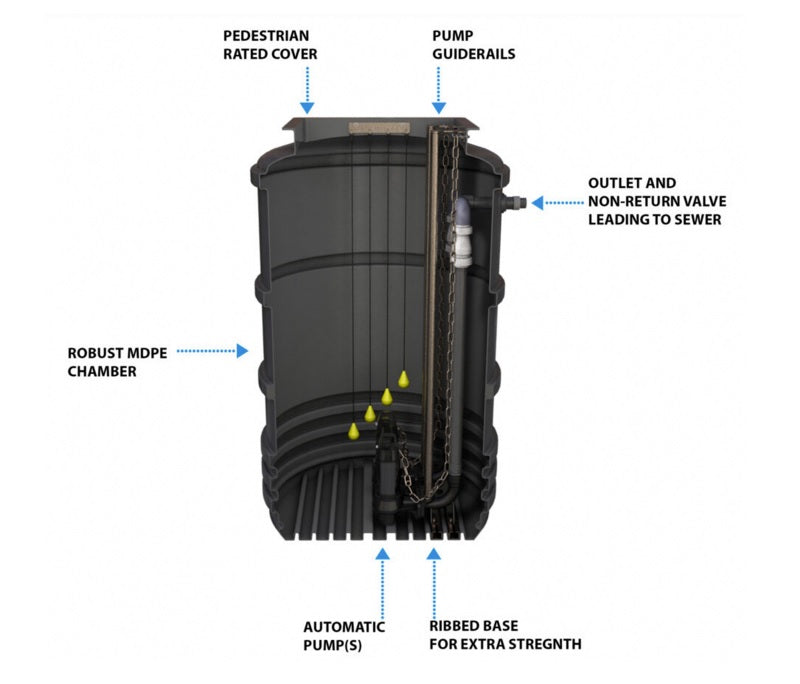

- MDPE chamber designed for extra strength
- Massive choice of pumps with solid handling up to 80mm
- Macerator pump available
- Non-return valve and internal pipework included
- Ideal for sewage and grey water application
- Can be paired with high-level alarms and telemetry systems

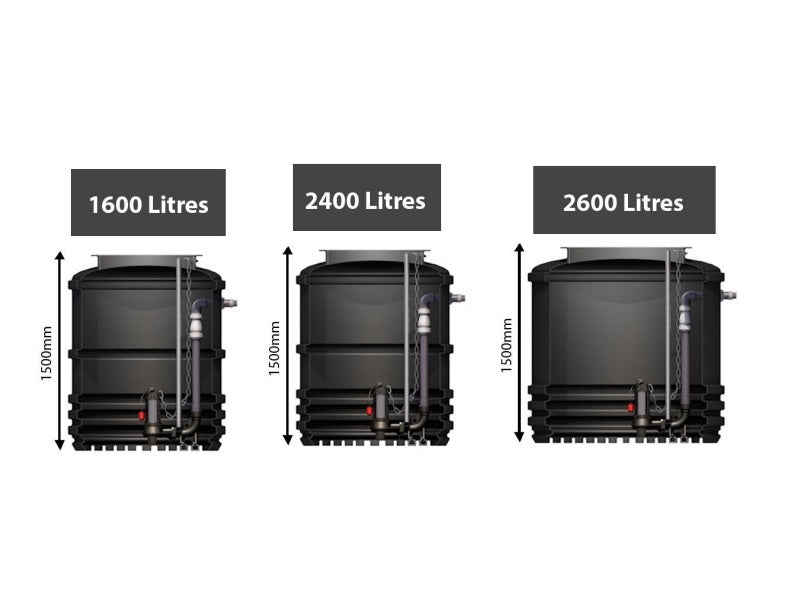

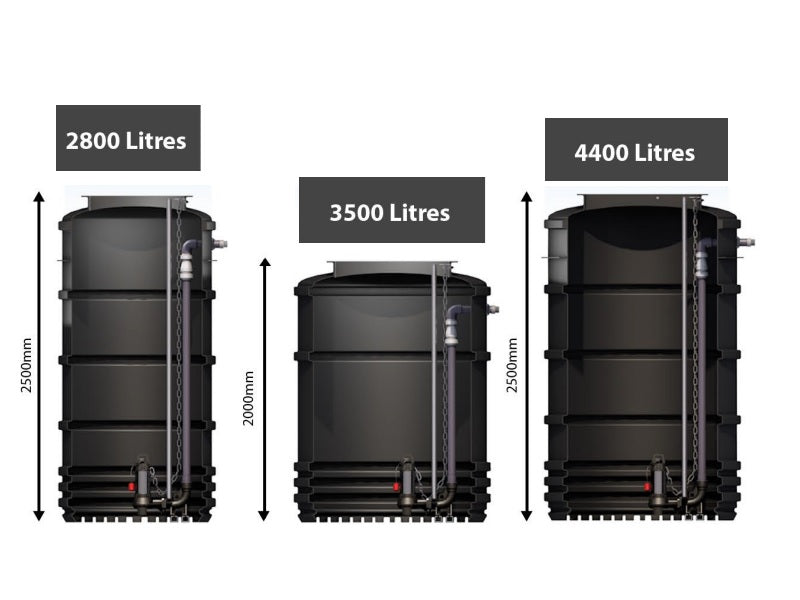

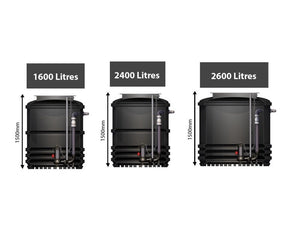

|Capacity||Diameter||Height||Access Cover Size||Access Cover Rating|
|1600 Litres||1200mm||1500mm||600 x 750 (mm)||Pedestrian|
|2400 Litres||1200mm||2000mm||600 x 750 (mm)||Pedestrian|
|2800 Litres||1200mm||2500mm||600 x 750 (mm)||Pedestrian|
|3300 Litres||1200mm||3000mm||600 x 750 (mm)||Pedestrian|
|2600 Litres||1500mm||1500mm||900 x 900 (mm)||Pedestrian|
|3500 Litres||1500mm||2000mm||900 x 900 (mm)||Pedestrian|
|4400 Litres||1500mm||2500mm||900 x 900 (mm)||Pedestrian|
|5200 Litres||1500mm||3000mm||900 x 900 (mm)||Pedestrian|
50mm Solid Handling Pump Specifications
|Model Ref||HIPPO 50||HIPPO 75||HIPPO 100||HIPPO 150||HIPPO 200|
|Power Supply||1ph 230v / 3ph 400v||1 ph 230v||1ph 230v / 3ph 400v||1 ph 230v||1ph 230v / 3ph 400v|
|Rated Current||4.2A (1ph) 1.6A (3ph)||5.5A||7.2A (1ph) 2.5A (3ph)||9A||12A (1ph) 3.9A (3ph)|
|Max Flow Rate||240 l/m||240 l/m||300 l/m||390 l/m||420 l/m|
65mm Solid Handling Pump Specifications
|Model Ref||HIPPO-300 DN65||HIPPO-400 DN65||HIPPO-550 DN65|
|Power Supply||3ph 400v||3 ph 400v||3 ph 400v|
|Max Flow Rate||300 l/m||500 l/m||500 l/m|
80mm Solid Handling Pump Specifications
|Model Ref||HIPPO-200 DN80||HIPPO-300 DN80||HIPPO-400 DN80||HIPPO-550 DN80||HIPPO-550 DN80|
|Power Supply||1ph 230v / 3ph 400v||3 ph 400v||3 ph 400v||3 ph 400v||3 ph 400v|
|Rated Current||12A (1ph) 3.9A (3ph)||6A||6.7A||9.1A||9.1A|
|Max Flow Rate||460 l/m||400 l.m||600 l/m||900 l/m||900 l/m|
Macerator Pump Specification
|Power Supply||1ph 230v / 3ph 400v||1ph 230v / 3ph 400v||3 ph 400v||3 ph 400v||3 ph 400v|
|Rated Current||9.4A (1ph) 3.3A (3ph)||11.5A (1ph) 4.5A (3ph)||4.7A||8.7A||12.5A|
|Max Flow Rate||160 l/m||160 l/m||160 l/m||300 l/m||300 l/m|
