Graf Infiltration Tunnel Kit for Soakaways, Attenuation and Wastewaster

£269.00
Maximum quantity available reached.

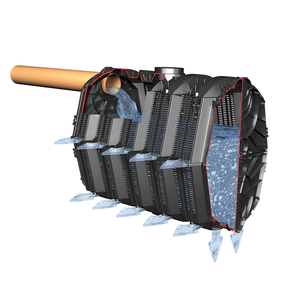

The SuDS Infiltration Tunnel has been designed for the use in underground applications as a means to efficiently create a soakaway or attenuation storage.

Include upstream filtration/access to allow inspection and maintenance.

This kits includes everything required to complete the storage aspect of a soakaway.

The following items are included;

  • Tunnel modules to suit capacity
  • End plates to suit orientation
  • Geotextile
  • Deaeration end

The infiltration tunnel can be configured linearly or as a twin deep tunnel.

Features and Benefits:

  • The system which consists of one or several tunnel modules and two end plates can be extended at will
  • The laying is realized in one or more lines of the same level
  • As the weight of one module is only 11 kilos, the handling of the Infiltration Tunnel is excellent
  • The surface beyond the tunnels is lorry-bearing which offers versatile possibilities
  • The infiltration tunnel can be loaded permanently up to 59kN/sqm and thus is also suitable for lorry-bearing
  • 5 years warranty

Dimensions of 1 unit :

Length: 1160mm (add 1160mm per additional unit)
Width: 800mm
Height: 510mm (1020mm in twin arrangement)
Weight: 10kgs
Capacity: 300L

Optional Accessories

Soakaway design

Wastewater Soakaway design

There is no additional documentation for this product
