Freeflush high flow diverter - tank linking kit

£14.99
Maximum quantity available reached.


Diverters perform best when there is no restriction to the outlet. Restrictions result in throttling the flow which reduces yield and precious rainwater as the water cannot escape via the outlet and is throttled back over the diverter weir.

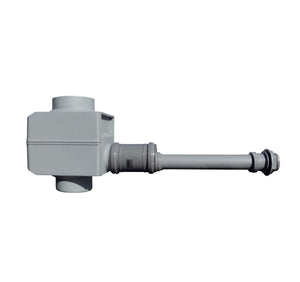

This high flow diverter-tank linking kit is suitable for high flow diverters with a 50/75mm spigot such as the 3P Filter Universal or the Regendieb Original.

There are two options:

1. 40mm push fit (minimum ID=33mm)

This kit includes a 75 to 40mm reducer, a ~30cm section of 40mm pipe and a 40mm tank connector. The kit can be extended with standard 40mm push fit pipe and fittings.  This increases the bore area by ~125% compared to a standard 32mm bore tank connector (ID~22mm) allowing increased yields during intense downpours when high yield matters the most.

To use, simply remove the reducing spigot from the diverter and slide the kit onto the 75mm spigot.

This kit can be supplied with a calmed inlet, see here.

2. 50mm flexi (minimum ID=38mm)

A ~30cm length of 50mm solid hose, jubilee clips and a 1 1/2" tank connector.  This kit increases the bore area by almost 200% compared to a standard 32mm bore tank connector (ID~22mm) allowing increased yields during intense downpours when high yield matters the most.

To use, simply trim the reducing spigot at the 50mm junction and insert the  spigot into the hose and seal with the jubilee clip. A thin bead of silicone is advised prior to fitting and tightening.

DIVERTER NOT INCLUDED.
