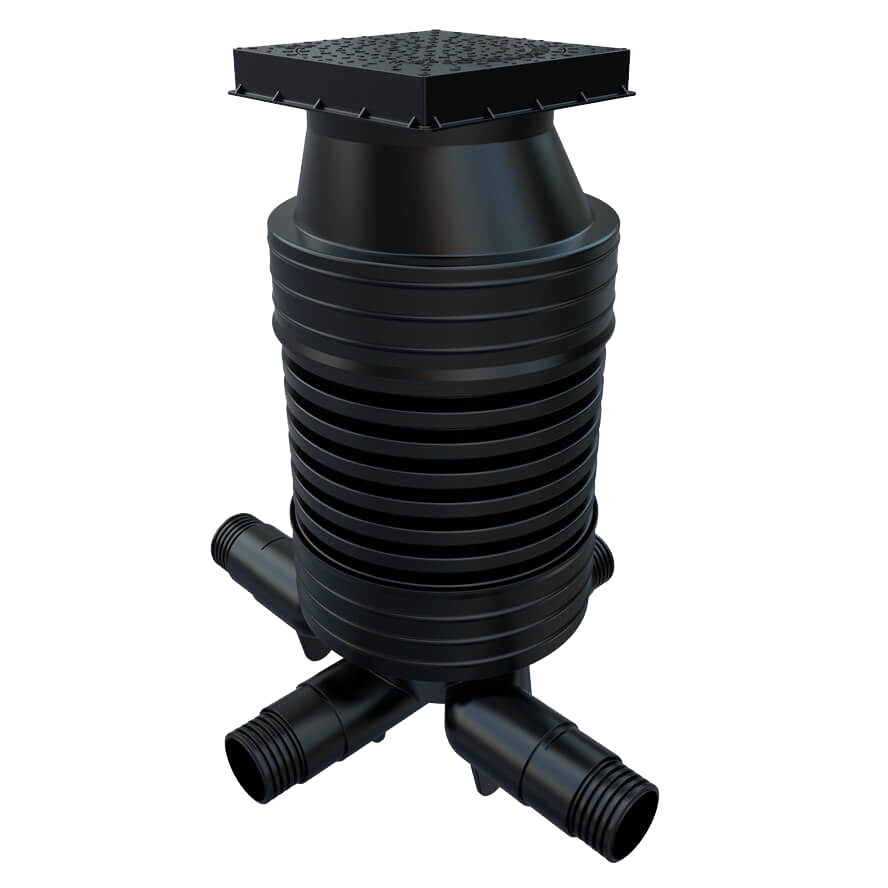

Accesso Surface Water Inspection Chamber - 600mm Diameter For 150mm Twinwall Pipe
600mm diameter – Factory built inspection chambers, delivered to site as single piece units, ready to install, no assembly required.
All chambers feature a robust, impact resistant, rota moulded base. This model has 150mm twinwall connections to main channel and two further optional 150mm side connections at 90°, these have blind ends, that can be cut off on site if required.
Chambers come with 150mm twinwall rocker pipes to main channel and further 150mm rocker pipes are available for side inlets, as well as adaptors, to offer 110mm or 160mm EN 1401 side connections or 225mm twinwall (outlet only). Base only, has no rocker pipes fitted.
Base only – comes without any rocker pipes fitted.
Optional Accessories
Suitable Covers
600ACSB125600ACSB125W
Pipework
- Main channel pipework – 150mm twinwall
- Optional side inlets – 2 x 150mm twinwall
Application
- Above ground access for inspection and maintenance of surface water pipework systems
- Suitable for Adoptable and Non-Adoptable applications
- Maximum installation depth to soffit of pipe - Adoptable 3000mm and Non-Adoptable 3000mm
- Design & Construction Guidance (DCG) - Type D & E Chambers
- EN 13598 Part 1 & 2 (2009)
- Building Regulations - Part H1
- Single Piece - Factory built units
- Robust - Impact resistant rota moulded base
- Quick and simple to install
- Base and five standard depths available
- Compatible with most UK twinwall pipe systems
- Lightweight - No machinery or lifting equipment required
- Stepped base - 60mm step from side to main channel, which meets the DCG requirement for Adoptable Sewers
- Restriction Caps are available for chambers deeper than 1 meter to soffit of inlet pipe to meet DCG
- Option of Reduction Cap 600450RC. This reduces the access diameter from 600mm to 450mm to accommodate a 450mm access cover
- Choice of Access Covers - A15 loading or B125 Loading
- Range of adaptors available to suit other pipework
- Access shafts can be easily cut onsite to required depth
- Granular backfill
Dimensions
Product Code |
Main pipework connections Ø (mm) |
Optional Side Inlets Ø (mm) |
Overall Depth A (mm) |
Inlet Invert B (mm) |
Soffit Depth C (mm) |
Approx. Weight (kg) |
AIC600150B (Base Only) |
150 | 2 x 150 @ 90° | 580 | 520 | 370 | 10 |
AIC600150B/1 | 150 | 2 x 150 @ 90° | 990 | 930 | 780 | 29 |
AIC600150B/1.5 | 150 | 2 x 150 @ 90° | 1510 | 1450 | 1300 | 37 |
AIC600150B/2 | 150 | 2 x 150 @ 90° | 1965 | 1905 | 1755 | 47 |
AIC600150B/2.4 | 150 | 2 x 150 @ 90° | 2355 | 2295 | 2145 | 55 |
AIC600150B/3 | 150 | 2 x 150 @ 90° | 3000 | 2940 | 2790 | 67 |
