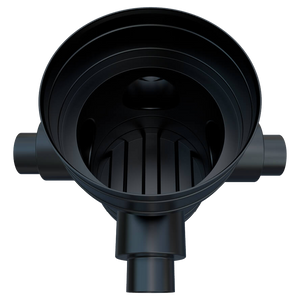

Accesso Catchpit Chamber - 600mm Diameter For 150-225mm TwinWall Pipe
600mm diameter – Factory built inspection chamber catch-pits, delivered to site as single piece units, ready to install, no assembly required.
All chambers feature a robust, impact resistant, rota moulded base with moulded in pipe spigots. The main channel has two pipe options – 150mm and 225mm twinwall, both these come with rocker pipe connections. Side connections are moulded spigot connections, that accommodate either 150mm or 225mm twinwall.
All spigots have blind ends that can be cut off on site if required.
Optional Accessories
- Access Covers
- Reduction Cap - please get in touch if a reduction cap is required
Suitable Covers
- 600ACSB125
- 600ACSB125W
- Main channel pipework – 150/225mm twinwall
- Optional side inlets – 150/225mm twinwall
Application
- Above ground access for inspection and maintenance of surface water pipework systems
- Suitable for Adoptable and Non-Adoptable applications
- Maximum installation depth to soffit of pipe - Adoptable 3000mm and Non-Adoptable 3000mm
Compliance
- Design & Construction Guidance (DCG) - Type D & E chambers
- EN 13598 Part 1 & 2 (2009)
- Building Regulations - Part H1
Features & Benefits
- Single piece - Factory built units
- Robust - Impact resistant rota moulded body
- Quick and simple to install
- 300mm sump depth
- High Strength profiled base
- Base and five standard depths available
- Compatible with all UK twinwall pipe systems
- Lightweight - No machinery or lifting equipment required
- Restriction Caps are available for chambers deeper than 1 meter to soffit of inlet pipe to meet DCG
- Option of Reduction Cap 600450RC - This reduces the access diameter from 600mm to 450mm to accommodate a 450mm diameter access cover
- Choice of Access Covers - A15 loading or NEW: B125 Loading
- Access shafts can
Dimensions
Product Code |
Main pipework connections Ø (mm) |
Optional Side Inlets Ø (mm) |
Overall Depth A (mm) |
Inlet Invert B (mm) |
Soffit Depth C (mm) |
Approx. Weight (kg) |
AICCP600225150B (Base Only) |
150 - 225 | 150 - 225 | 920 | 580 | 355 | 16 |
AICCP600225150B/1 | 150 - 225 | 150 - 225 | 1055 | 715 | 490 | 28 |
AICCP600225150B/1.5 | 150 - 225 | 150 - 225 | 1450 | 1110 | 885 | 36 |
AICCP600225150B/1.5 | 150 - 225 | 150 - 225 | 1965 | 1625 | 1400 | 46 |
AICCP600225150B/2.4 | 150 - 225 | 150 - 225 | 2355 | 2015 | 1790 | 54 |
AICCP600225150B/3 | 150 - 225 | 150 - 225 | 3005 | 2665 | 2440 | 66 |
