This below ground rainwater attenuation tank is a an excellent solution for small drainage areas for which SuDS are required. Infiltration may not be possible due to due poor ground conditions (impermeable clay) or limited space. Likewise and above ground attenuation tank may not appeal due to aesthetic/planning considerations.
This package provides the perfect solution to satisfying a planning condition and building control.
The benefit of using an integrated tank over crates is that the total installation time and cost is reduced since:
- A separate upstream debris filter is not required as one is integrated into the turret
- A separate flow control chamber is not required as one is integrated into the tank
- The installation of a tank is simpler and quicker than a crate install without the question mark over tank integrity and longevity
The tank is pre-fitted with a Flowbrake flow control device which limits the discharge leaving the tank. The amount of attenuation required varies from site to site so please get in touch so we can complete the SuDS attenuation calculation.

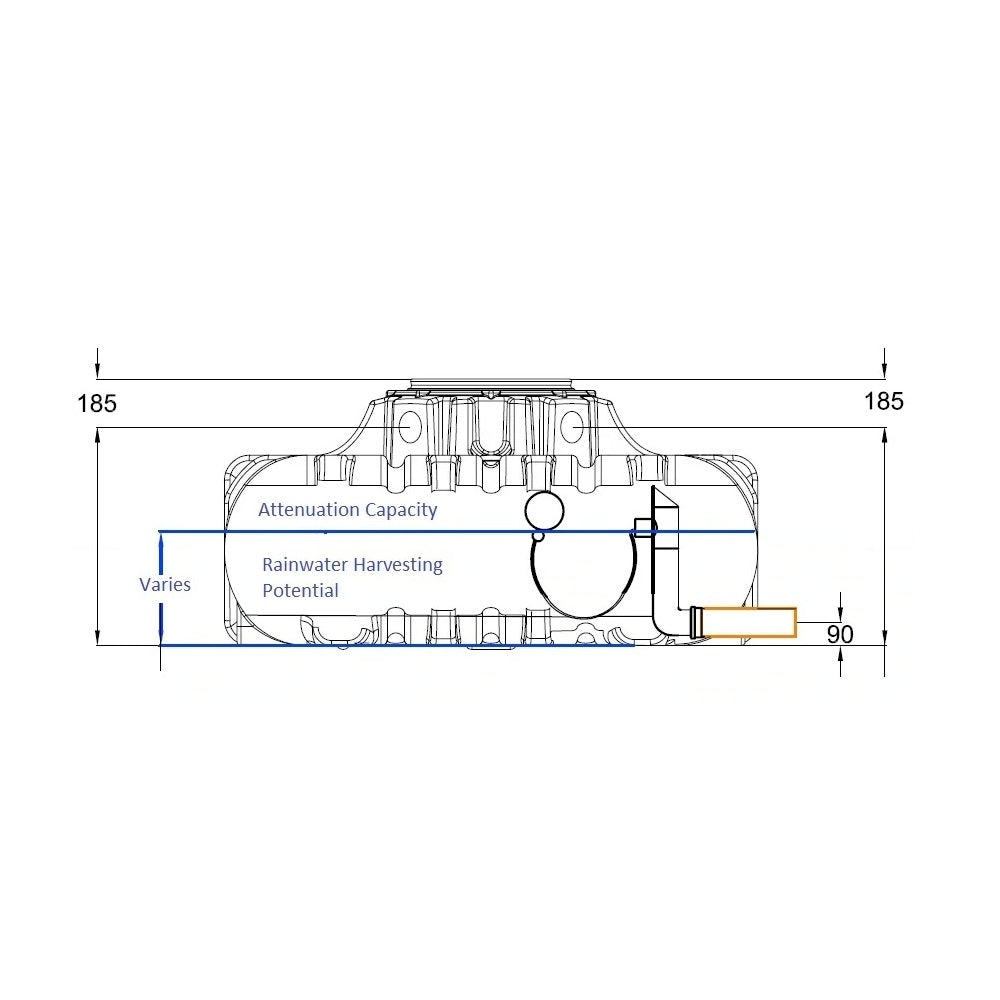

In many cases there may be a residual volume of water which is not required for attenuation and can be reused -drawn down further. This allows for a combined rainwater harvesting and attenuation solution.
Where peak rainfall exceeds the tank outlet capacity the balance is stored or attenuated in the tank and released slowly back into the foul water or surface water system.

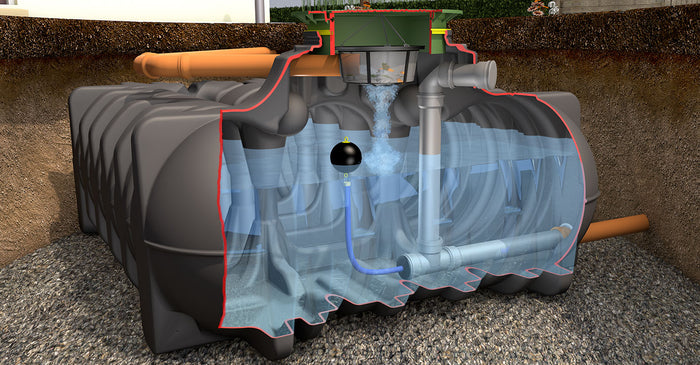

The tank comes complete with an internal filter which prevents debris in the system.

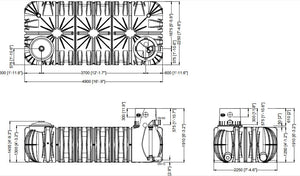

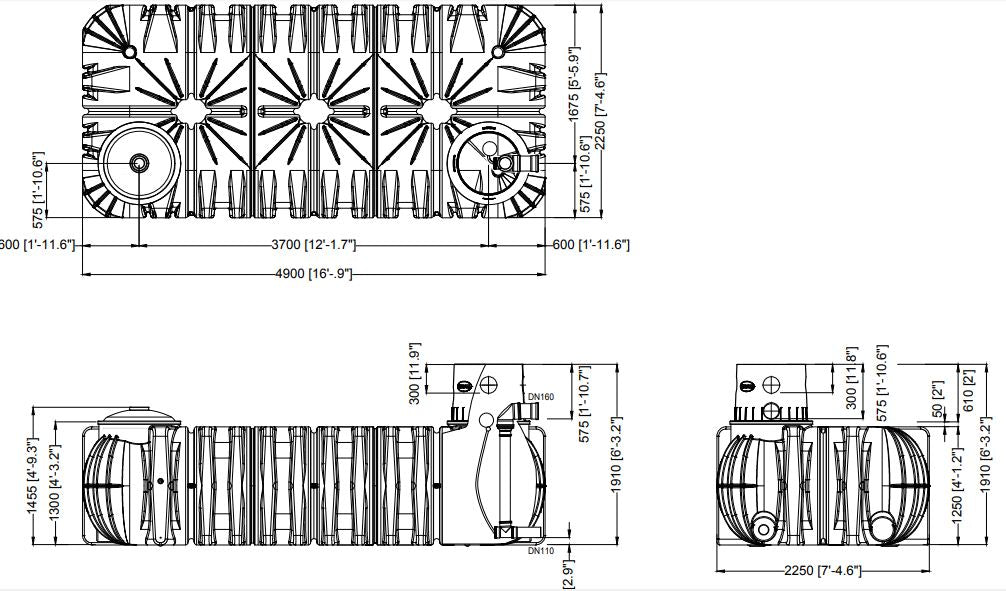

This tank has a 10,000l storage capacity with a minimal footprint and shallow dig.
Tank weight: 460kg.
The tank is manufactured in the Germany from MDPE. This is a very solid construction dissimilar to other cheaper thin walled tanks available.
If you require attenuation tank design please get in touch.
Features and Benefits
- Simple installation saving labour when compared to crate solution
- Robust solution - no chance of breaching attenuation tank
- "Push-fit and go" solution
- Full installation instructions are included
- Shallow excavation
