SuDS drainage Variable Orifice Choke Drain Chamber

£599.00
Maximum quantity available reached.

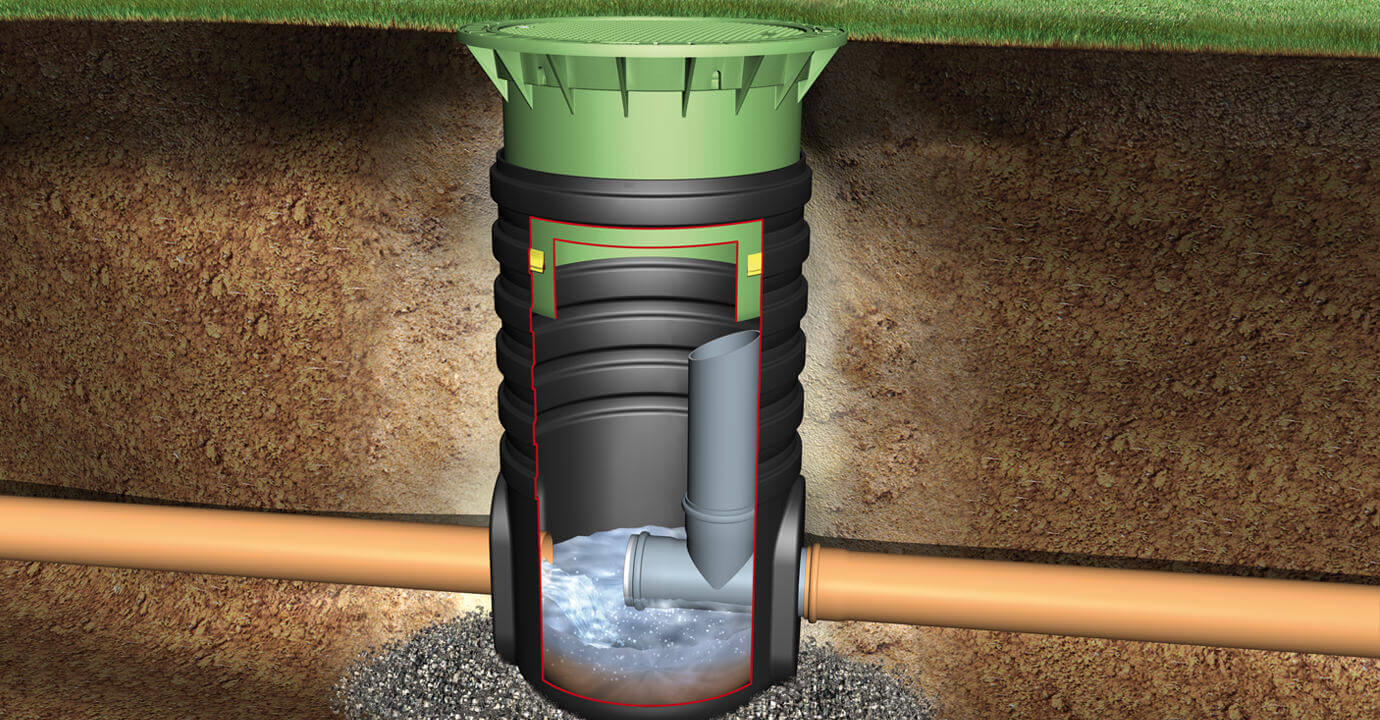

    Orifice Flow Control is a form of flow control used commonly in SuDS applications.

    Orifice flow control chambers are used at the most downstream point of a SuDS drainage system to throttle the flow.




    Where an orifice is less than 40mm it is typical to use silt and debris control upstream of the SuDS feature to prevnt blockage.





    Features and benefits:
    • Choke drain shaft with external access
    • Volume flow adjustable from 0.5 litres to 10 litres per second
    • Stainless Steel choke drain fabrication

    Optional Accessories

    Rainus downpipe leaf ejector

    Silt Guard

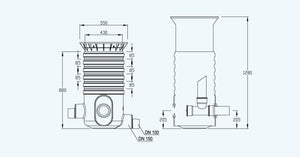

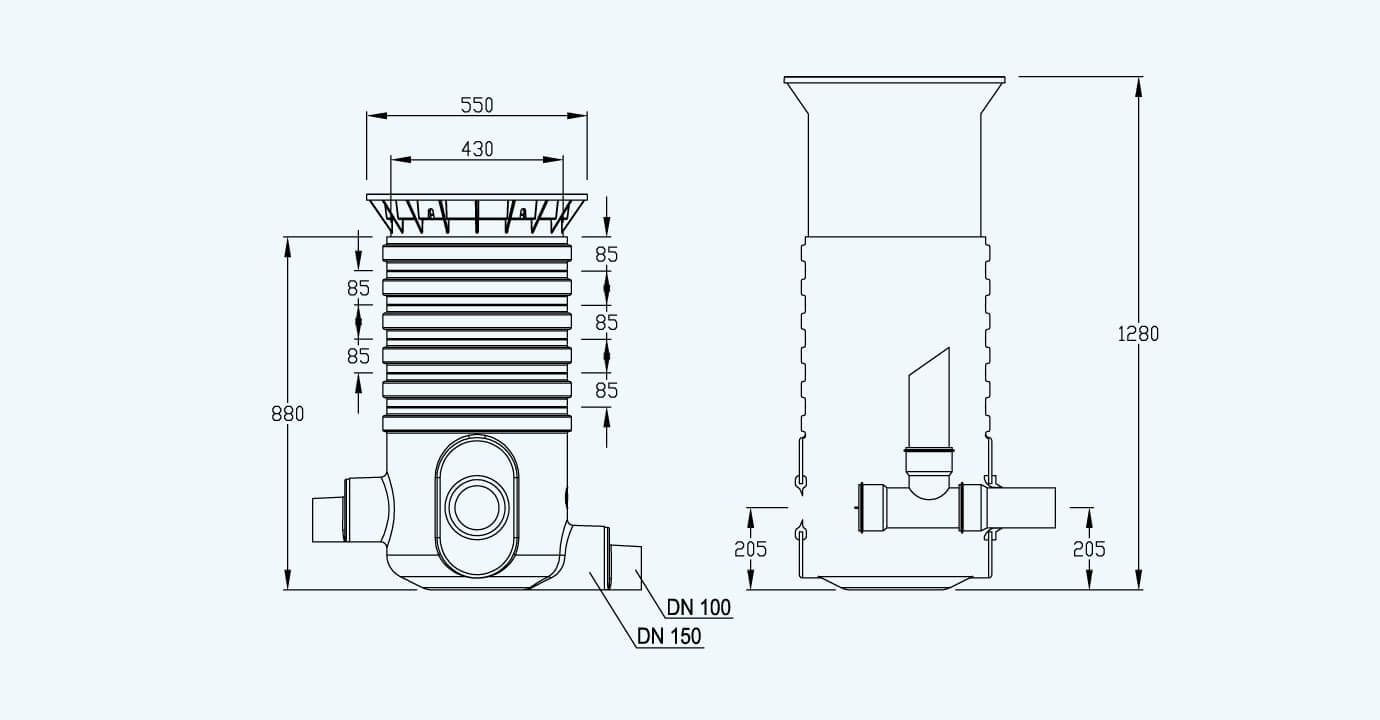

    order no. Length (mm) Width (mm) Height (mm) Weight (kg)
    340028 620
    		 850 960 13
    340029 (vehicle) 620 850 960
