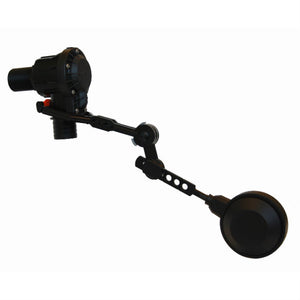

Quickstop advance float valve

£40.99 £44.99
Maximum quantity available reached.

Designed as a replacement to conventional ballcock valves in water tanks to protect booster pumps, the Quickstop goes instantly from fully open to fully closed, preventing repeated stop/start cycling of pumps when filling tanks or cisterns.

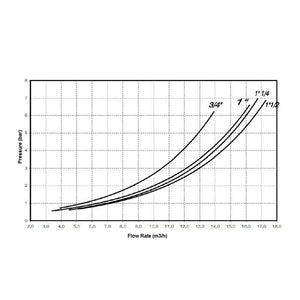

QuickStop has a very high flow rate allowing rapid filling with minimal pressure loss.

Available in sizes: 0.5", 0.75", 1", 1.25" and 1.5".

Locking lever easily sets the minimum and maximum tank liquid levels (for Quickstop valves which also have an adjustable arm length see our QuickStop Advance - Adjustable range).

Can be used in water tanks, toilet cisterns, roof tanks, header tanks instead of a ballcock and float valve.

When water is drawn from the tank, the Quickstop has a delayed re-start level of approximately 3cm, which further reduces the stop/start frequency of the pump.

QuickStop float valves are hydraulic water level regulators with a hydraulically operated closure.

Technical Information

Specification:

  • Operating Pressure: 0.2 to 6 bar
  • Max Pressure: 10 bar
  • Bursting Pressure: >20 bar
  • Operation: Continuous
  • Operating Temperature: 0 to 50oC
  • CE Mark

Materials:

  • Body: Non-toxic Polycarbonate
  • Float: Polypropylene
  • Levers: ABS
  • Membrane: Rubber SEBS
  • Colour: White (0.5"), Black (all other sizes)
  • Screws: Stainless Steel

Included Components

  • Quickstop Advance Float Valve (Standard)
  • Mesh Filters (optional)
  • Washers and Nut
  • Installation Instructions
