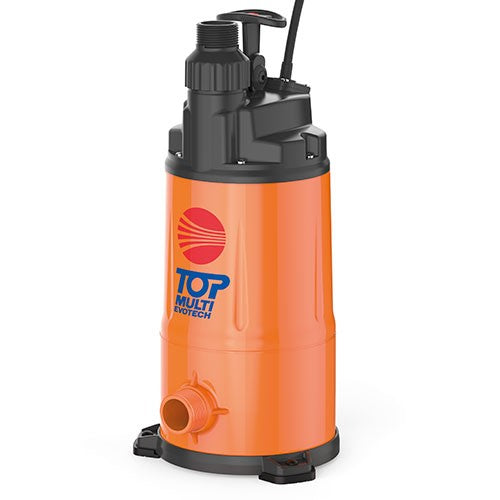

Pedrollo Top Multi Evo Tech Submersible Pump (With Automatic Control)

£569.00
Maximum quantity available reached.

Top Multi Evo Tech pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made.
Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.
An internal electronic device starts or stops the pump automatically when the tap is opened or closed.

Installation and Use

The Pedrollo Top Multi Evo Tech submersible pumps are suitable for use in applications such as supplying water from rainwater harvesting tanks for use in irrigation systems, garden watering etc. They are highly efficiency and reliable.

Designed for simple installation and flexible use in gardening, cellar drainage and emptying and filling of deep wells.

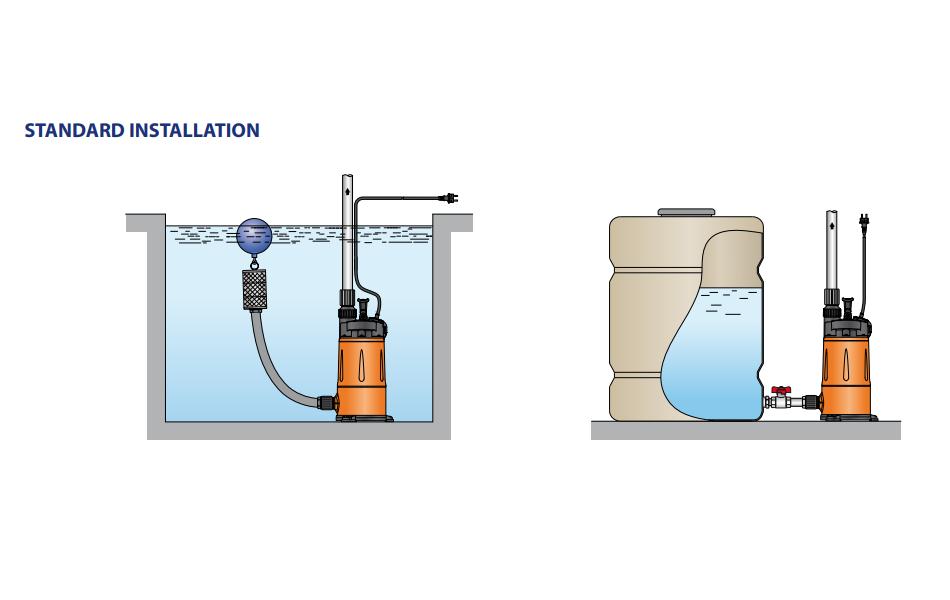

Features horizontal inlet. Includes Floating Suction Kit (See standard installation) & 4ltr Pressure vessel

The TECH version are fitted with an internal electronic device starts or stops the pump automatically when the tap is opened or closed

Construction

  • Glass fibre reinforced technopolymer complete with threaded delivery port in compliance with ISO 228/1
  • Stainless steel AISI 304 motor sleeve
  • Noryl FE1520PW impellers
  • Noryl diffusers complete with anti-wear rings
  • Stainless steel motor shaft EN 10088-3 – 1.4104
  • Ports: 1″ 1/4
  • Power: 0.55kW
  • Power Supply: 230V Single Phase (230/1/50)

Complete with

  • 10 m long power cable
  • Internal electronic device for pump starting (when tap opened) and stopping (when tap closed)
  • Hose connector Ø 35 mm
  • Threaded connector 1¼”

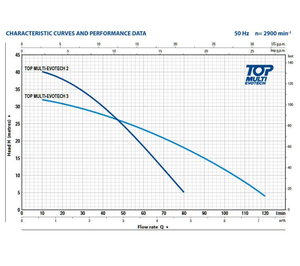

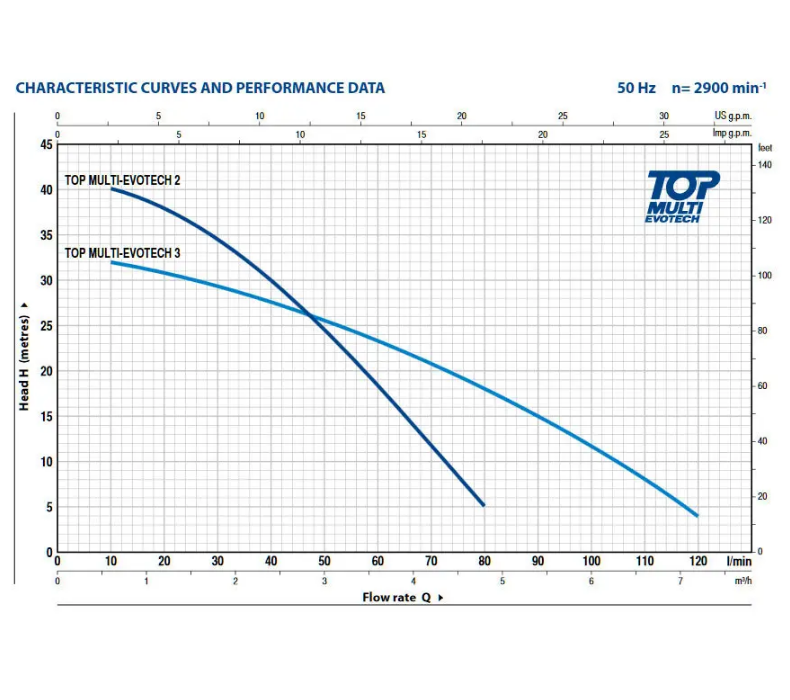

Performance Range

  • Flow rate up to  120l/min (7.2 m³/h)
  • Head up to 42m
  • Restart Pressure: 1.5 Bar

Application Limits

  • 5 m maximum immersion depth
  • Maximum height between pump and point of use 10 m
  • Maximum liquid temperature 40 °C
  • Suction down to 84mm above ground level
  • Continuous service S1

Absorption

Model Voltage
Single Phase 230V 110V
Top Multi 2 - Evotech 3.4 A 6.8 A
Top Multi 3 - Evotech 3.6 A 7.2 A

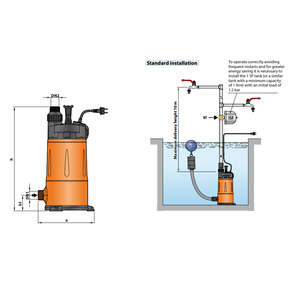

Dimensions and weight

Model
DN1
DN2
Dimensions (mm)
Single Phase N. Stages a h h1 Kg
Top Multi 2 - Evotech
1 1/4"
1 1/4"
3
239
442
68
9.9
Top Multi 3 - Evotech
