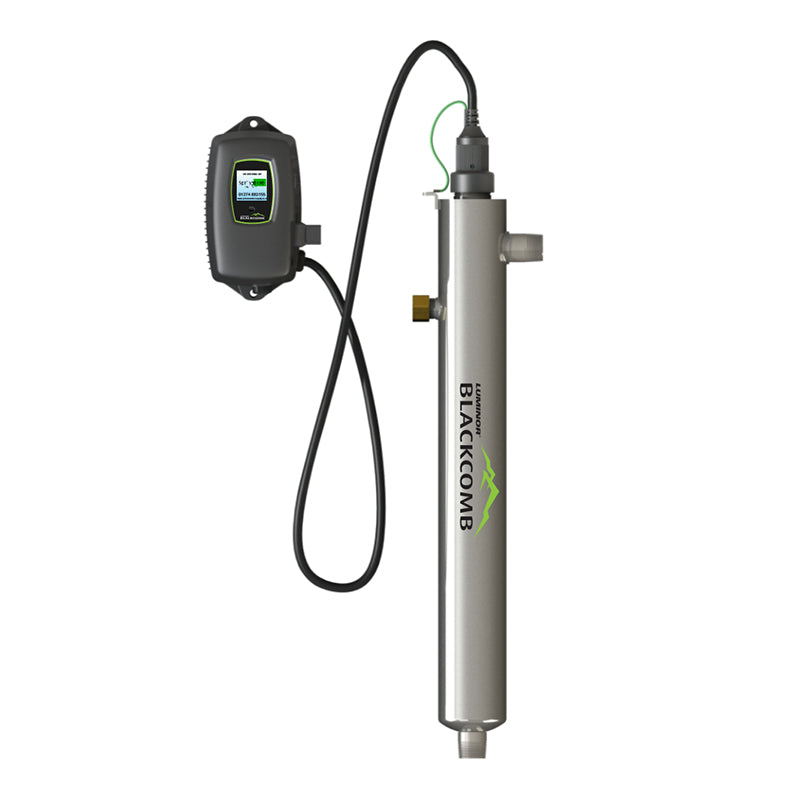

Luminor Blackcomb UV Steriliser 11lpm to 79lpm

Model

£449.00

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

If you are unsure of the microbiological quality of your source water or if you are looking for additional security from your water source, then LUMINOR has the solution in the BLACKCOMB series of residential UV systems.

UV technology is proven to control microbiological (bacteria & virus) issues in water including E.coli, Cryptosporidium and Giardia lamblia.

BLACKCOMB provides the ultimate in UV protection for your home with the inclusion of a true 254nm Teflon® based UV sensor that continuously monitors the performance of the UV system and displaying the output via a colour screen. In addition to UV output, diagnostics, system status, warnings, even QR codes are included.

With the integral expandability port, the addition of a 4-20mA output or a solenoid valve is a simple plug-and-play option.

Features and benefits

Free floating (no cable twist), keyed-in-place, 254nm Teflon® based UV sensor continuously measures and displays UV output (as a %) (std. on LB6, optional on LB5)
Colour screen controller with Lightlock™ for protected lamp replacement, includes QR codes, full diagnostics & warnings • “Future-proof” expandability port for future upgrades and options
Axial flow, 304 stainless steel polished reactors, designed & manufactured to ASME pressure vessel standards
User friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed) Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life (9,000 hours)
Constant current electronic controller (one controller for all LP units) in a splash proof case, fully potted ballast virtually eliminates common water damage issue
Full customization available as an option (language, home screen, phone number, QR codes, etc.)

Model	LB5-033	LB5-063	LB5-103	LB5-153	LB5-203
Flow Rate (@ 30mj/cm²)	11.4 lpm 0.7m³/hr	22.7lpm 1.4m³/hr	41 lpm 2.5m³/hr	57 lpm 3.4m³/hr	79 lpm 4.8m³/hr
Port Size	1/2" MNPT	3/4" MNPT	3/4" MNPT	1" MNPT	1" MNPT
Electrical	90-265 V / 50 - 60 Hz
Lamp Watts	15	22	39	50	42
Power (Watts)	20	30	49	62	51
Replacement Lamp	RL-290	RL-470	RL-820	RL-999	RL-850
Replacement Sleeve	RQ-290	RQ-470	RQ-820	RQ-999	RQ-850
Chamber Material	304 Stainless Steel, A249 Pressure Rated Tubing, Polished & Passivated
Reactor Dimensions	2.5 x 14.3" (6.4 x 36.4cm)	2.5 x 21.3" (6.4 x 54.2cm)	2.5 x 35.2" (6.4 x 89.5cm)	2.5 x 40" (6.4 x 101.6cm)	3.5 x 36.1" (8.9 x 91.7cm)
Controller Dimensions	6.8 x 3.6 x 3" (17.2 x 9.2 x 7.6cm)
Operating Pressure	0.7 - 10.3 bar (10 - 150 psi)
Operating Water Temperature	2 - 40^o (36 - 104^o F)
UV Monitor Port	No	Yes (optional UV Sensor module sold separately)
Solenoid Output	Yes (requires optional solenoid module) - Activates on lamp failure
Dry Contacts	Yes (requires optional remote alarm module)
4-20mA Output	Yes (requires optional 4-20mA module)
Lamp Change Reminder (audio & visual)	Yes
Lamp Out Indicator (audio & visual)	Yes
Shipping Weight	3.3kg (7.3lbs)	4.2kg (9.3lbs)	6.8kg (15.0lbs)	8.0kg (17.6lbs)	7.5kg (16.5lbs)
