The Vortex Micro Sewage Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. A high water alarm is available if required. The Micro Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind.
A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards.
- Cast iron/stainless steel construction.
- 50mm (2') solids handling capacity
- Coolant filled motor.
- Mechanical seal.
- 10 Meter cable.
- Max 16 Meter lift.
- Max flow 1.8 L/sec
- Float switch as standard.
- Polyethylene tank.
- 190L capacity.
- Screw down lid (Pedestrian rated)
- 1 x 110mm/160mm inlet seal to allow inlet to be drilled on site.
- 40mm cable duct.
- 2” internal pipe work
- 2” non-return valve
- 2” quick release coupling
- Audible/visual high level alarm control box available as optional extra
- Evak 50mm solids sewage pump

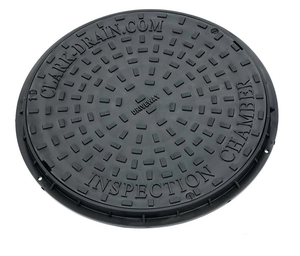

- 450mm dia Pedestrian rated cover (double seal)
- Soft close Non return valve
- Internal PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
- Storage requirement: 190 litres, 300 litres, 450 litres, 600 litres
- Audible/visual high level alarm control box

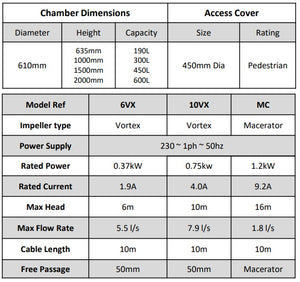

|Capacity (L)||Depth (mm)||Ø (mm)|
