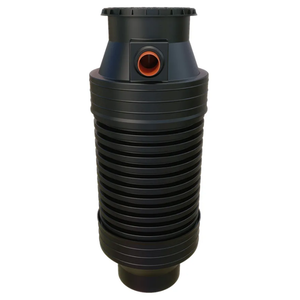

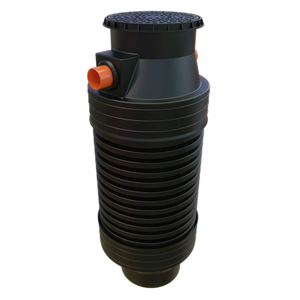

Underground Grease Trap - 300 and 500l

£479.00
Maximum quantity available reached.

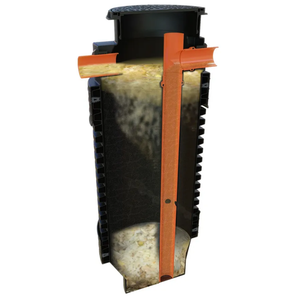

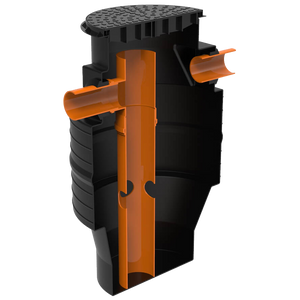

The underground grease traps have a passive design, which works by simply slowing the flow of wastewater, allowing it to cool and separate into two separate layers within the trap.

Firstly solids and food waste being heavier than water will drop to the base of the chamber. GT models all have deep vertical design that enhances the fat, oil and grease (FOG’s) separation process, offering better settlement and storage of solids and sludge at the base of the trap.

FOG’s entering the trap that have a specific gravity less than the retained water in the unit and will separate and FOG's will float to the top water level. This is known as ‘Gravity Separation’ which is a proven design that all passive grease traps work on.

Application

The GT300 and GT500 grease trap is designed for small commercial kitchens and restaurants, as fast food/takeaway establishments that are cooking with fats and oils and using multiple sinks to clean dishes and cooking utensils, so are potentially discharging FOG's via those sinks

Location and Ventilation

For the wastewater from the facility to have a chance to cool down before entering the unit, we suggest that it is placed a minimum of 3 meters away from the final sink or discharge point and that it is connected to a vent stack. If located inside a building, then a sealed access cover will need to be used to prevent odours.

Maintenance

Regular checks are required for the grease trap, to check the levels of FOG's and more. Weekly inspection and a minimum 6 monthly checks/cleans are recommended, full clean and emptying, which could be more regular, dependent on the type of facility the trap is installed.

Key features

  • Designed in accordance to BS EN 1825
  • Vertical chamber enhances separation process
  • Large access cover allows full access for maintenance
  • Robust rota moulded body
  • Chemical Resistant and non corrosive
  • Supplied with circular lockable A15 load access cover
  • Square access cover optional
  • Can be installed by a single person
  • Extension risers available to increase invert
  • Recyclable
  • Designed and Manufactured in the UK

*The table below gives a guide to number of meals per day the GT300 and GT500 will handle.*

Product Restaurant
1 service
Restaurant
2 services
Hotel
Restaurant
Hospital Schools &
colleges with food
preparation
Canteen
with no food
preparation
GT300 50 100 90 150 100 220
GT500 105 210 180 295 200 440

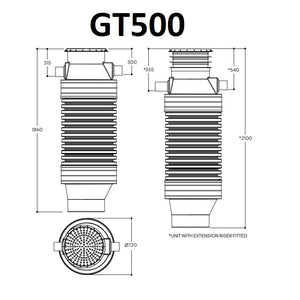

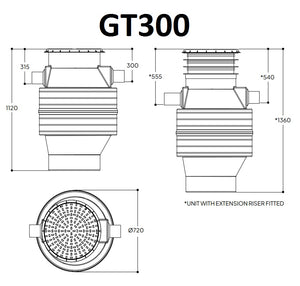

Dimensions

Volume (l) Working Capacity (l) Sludge Storage (l) Pipework (mm) Access Cover Rating Approx Weight (kg)
300 225 75 110 A15 20
510 465 150 110 A15 46
