Oriflo Flow Control 300mm ø Chamber P Series

£409.00
Maximum quantity available reached.

**Flow rate and head must be provided via email upon purchase**

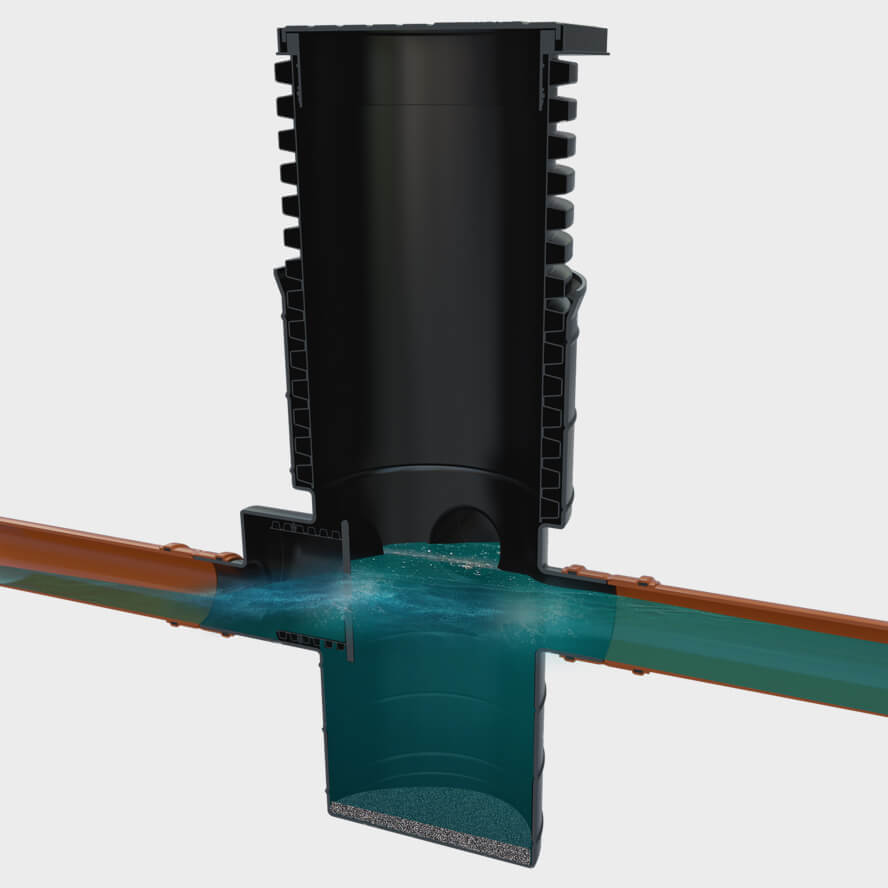

The Oriflo range is a series of Orifice Flow Control Chambers accommodating a range of flow rates

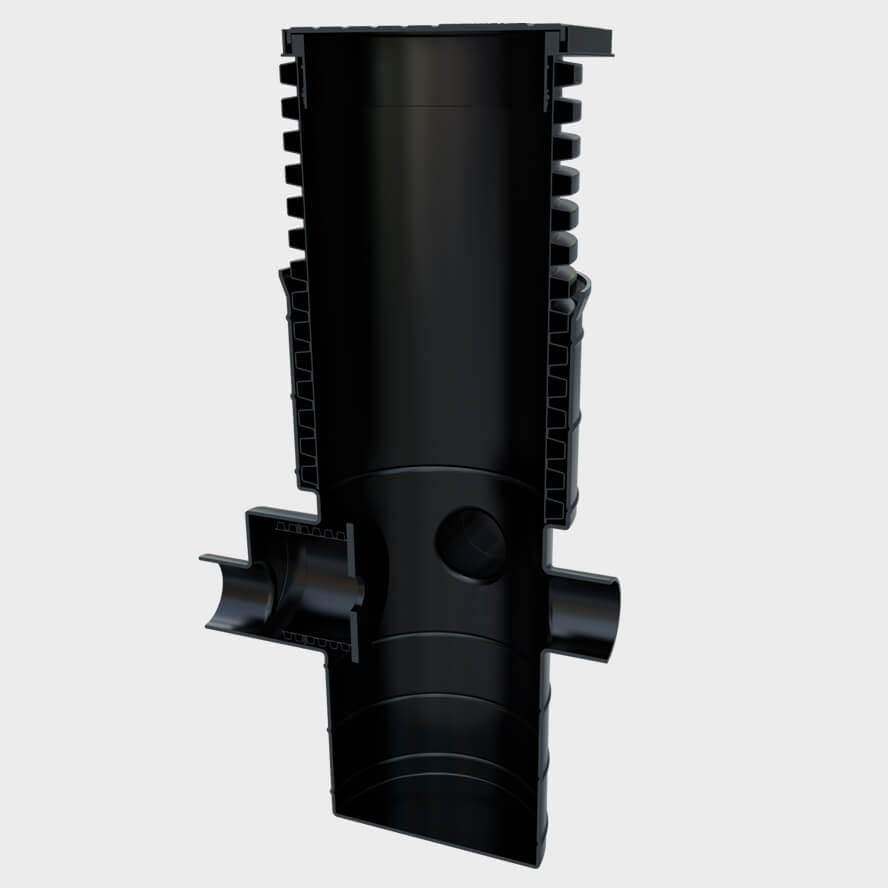

300mm diameter, pre-assembled flow control chamber, delivered ready to install

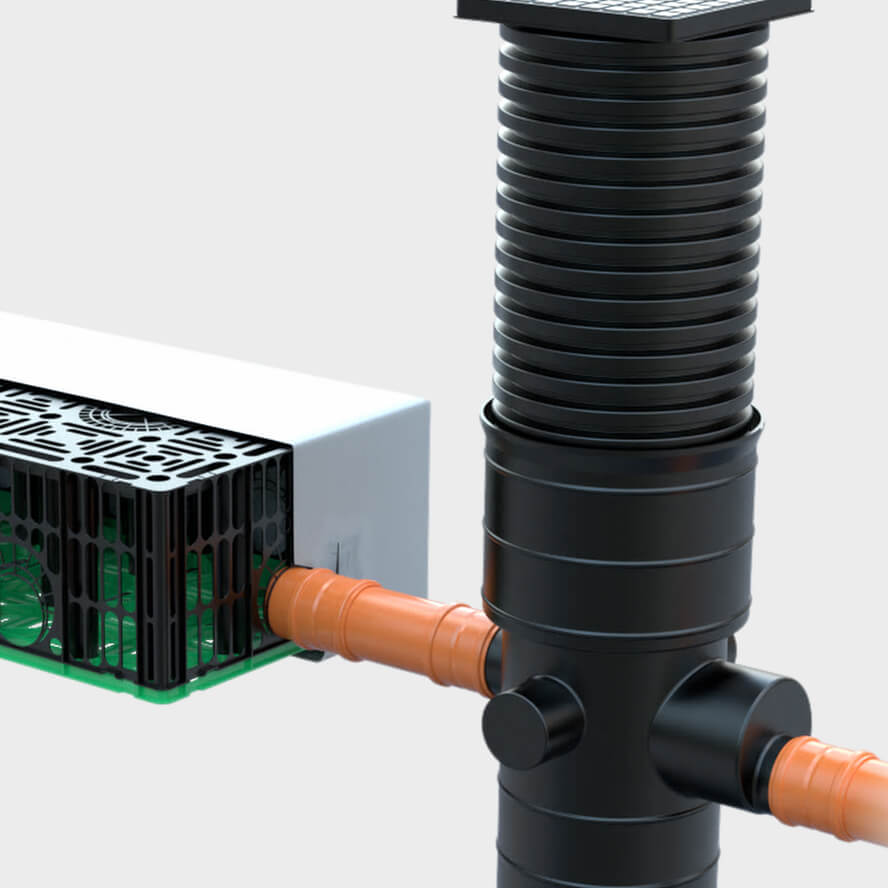

The P models are classed as unprotected orifice chambers and are specifically designed for installation downstream of pre filtered surface water run offs ie. permeable paving and cellular/crate attenuation systems.

Designed to facilitate such discharge flows from 0.5 to 24 litres per second with a design head of between 250mm and 1405mm.

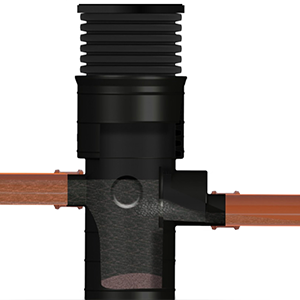

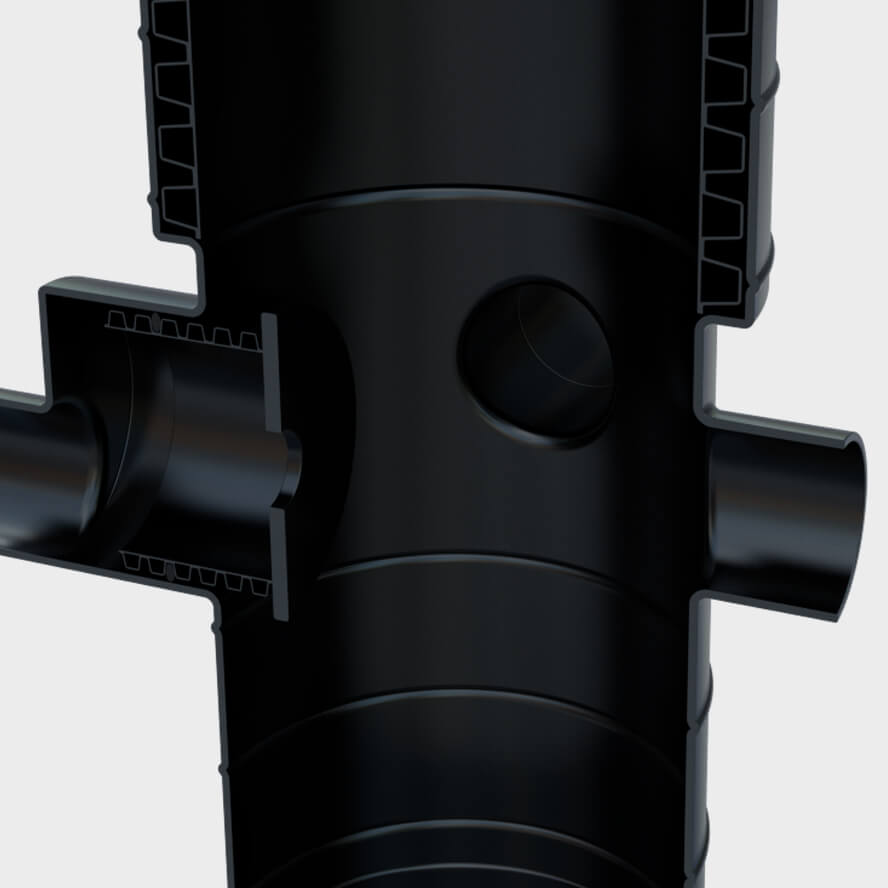

This model has a rotational moulded chamber base with 110mm or 160mm main channel socket connections including two further 110mm side inlets at 90°, 270° from the outlet at 0°. Side inlets are supplied as blanked ends that can be used as required

This is not supplied with an access lid

Optional Accessories

300mm Extension Riser

300ACSB125W Access Lid

Pipework

  • Main Channel Pipework: 110mm or 160mm Single Wall EN 1401 - Outlet at 0° and Inlet at 180°
  • Optional Side Inlets: 110mm Single Wall EN 1401 - Inlets at 90° and 270°

Guidance Documents

  • BS 8582 9.6
  • CIRIA75310.2, 20.5 Compliance
  • Design & Construction Guidance - April 2020. Section C7.12 - Flow Control Device

Technical Data

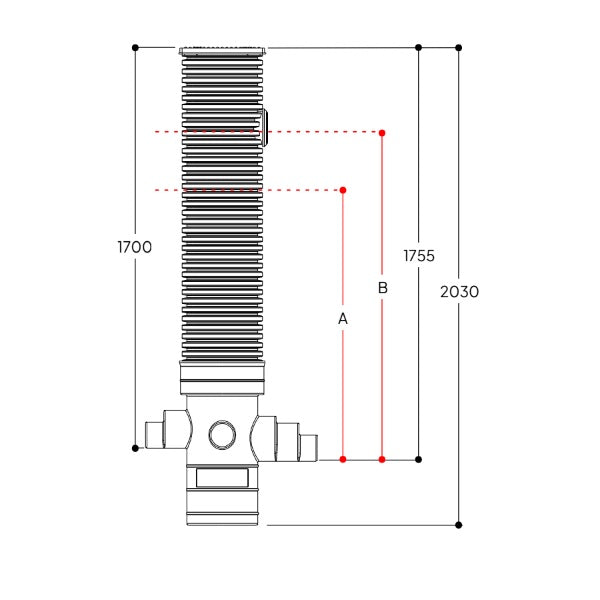

A-Max Head- Attenuation height (Lighttraffic): 1205mm
B-Max Head -Attenuation height (Pedestrian): 1405mm
Minimum restricted discharge achievable: 0.5 l/p/s
Maximum restricted discharge achievable: 20 l/p/s
Minimum design head: 250mm
Maximum design head: 1405mm
Recommended minimum orifice Ø (Adoptable): 50mm
Recommended minimum orifice Ø (NonAdoptable): 20mm
Main inlet &outlet connections: 110/160mm
Side Connections: 110mm
Access Cover Rating: A15
Approx.Weight : 19kg
