Firefighting Water Tank 22,000 Litre - 52,000 Litre
POA - Please get in touch for a quote, email drawings to sales@freeflush.co.uk

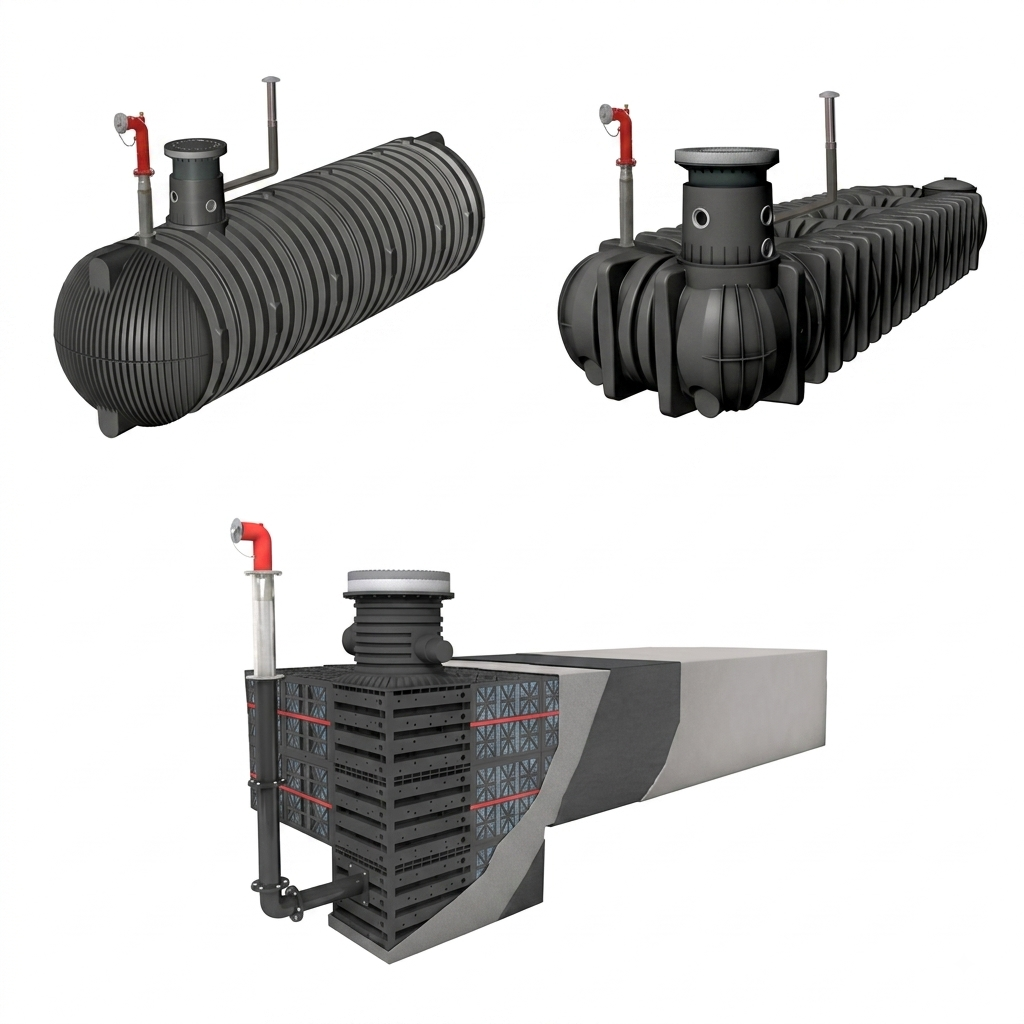

The Carat underground firefighting tank system has been specially developed to provide dedicated underground water storage for firefighting applications.
Available in capacities from 22,000 to 52,000 litres, the Carat and Platin XXL tanks are suitable for installation beneath areas subject to lorry loading and can be connected together when larger storage volumes are required.
Features
- Capacities from 16,000 to 52,000 litres
- Suitable for up to 40-tonne lorry loading
- Can be filled with mains water or harvested rainwater
- Tanks can be connected to create larger capacities
- Supplied with firefighting water accessories in accordance with DIN 14230
- Factory-assembled system available
- Easy access via a telescopic dome shaft
- Groundwater-stable construction
- Multiple DN100, DN150 and DN200 pipe connections available
- Optional DN300 connection
- Supplied with firefighting water extraction equipment
- Lighter than comparable concrete or steel tanks
- 15-year warranty
Scope of supply
- Underground GRAF Carat firefighting water storage tank
- Tank access via telescopic dome shaft
- Firefighting water extraction equipment
- Intake pipe with stainless-steel strainer
- Anti-vortex plate
- Firefighting water connection
- Ventilation chimney
- Access ladder

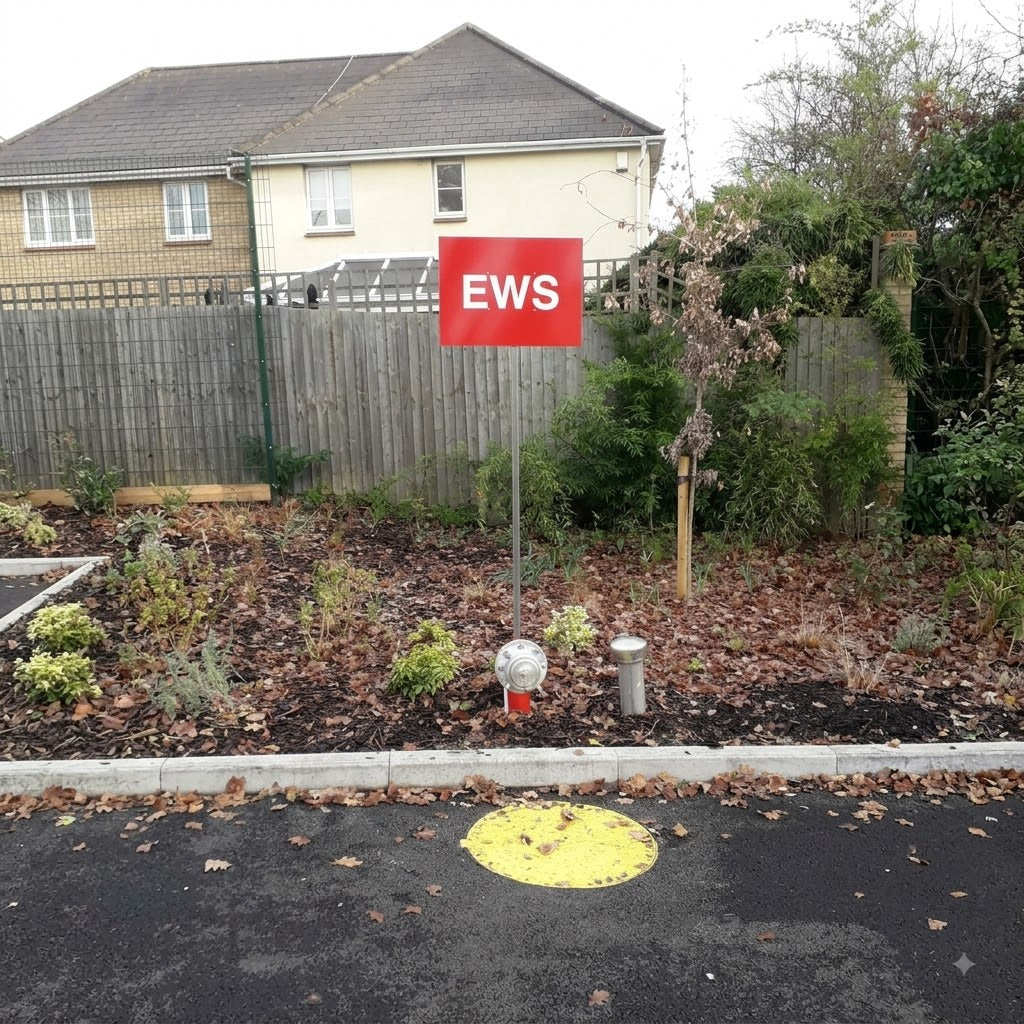

- Extraction-point signage
- Required pipe connections and fittings
- Factory-assembled components for straightforward installation

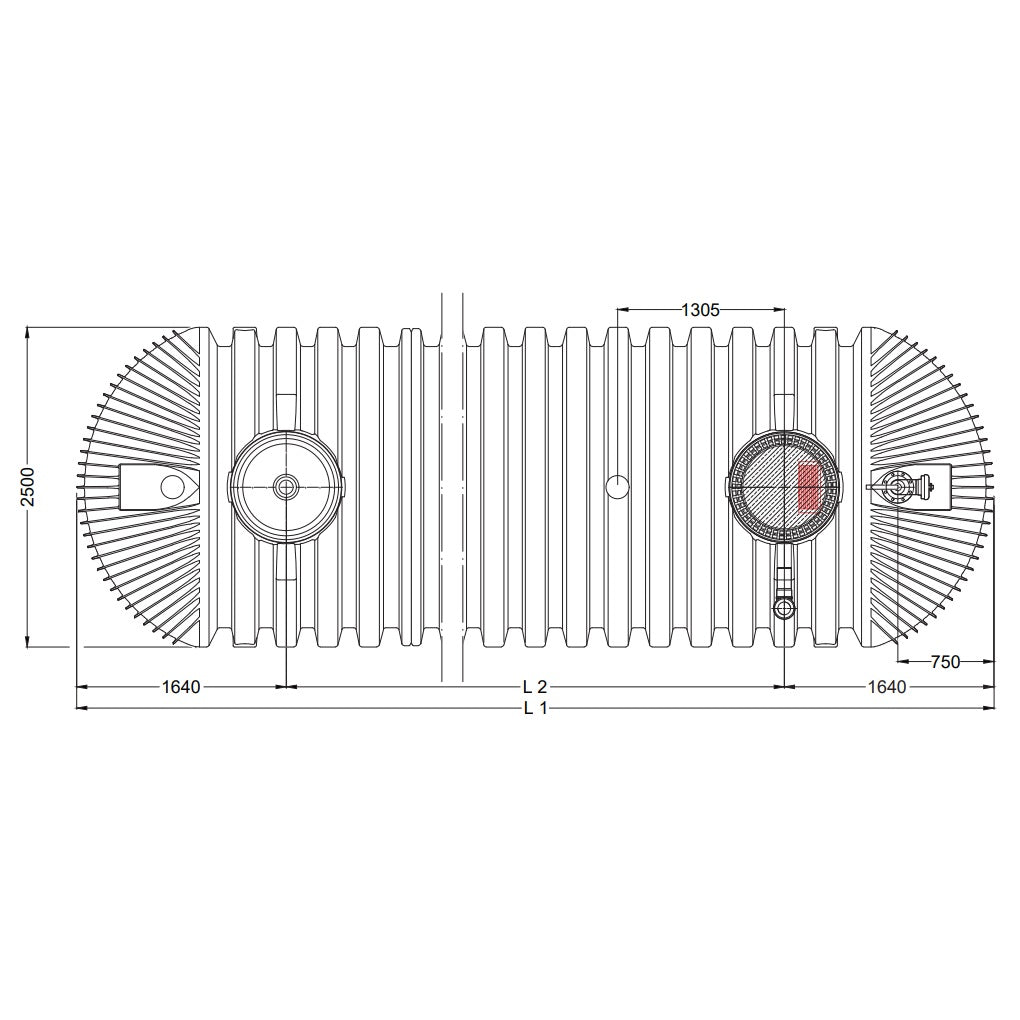

Dimensions
|
Total Volume [litres] |
Useable Volume [litres] |
Length L1 [mm] |
Length L2 (mm) |
Weight [kg] |
Product Code |
| 22,000 | 19,800 | 6,230 | 2,950 | 1,068 | 380176 |
| 26,000 | 23,400 | 7,200 | 3,920 | 1,168 | 380177 |
| 32,000 | 28,800 | 8,555 | 5,275 | 1,415 | 380178 |
| 36,000 | 32,400 | 9,525 | 6,245 | 1,515 | 380179 |
| 42,000 | 37,800 | 10,880 | 7,600 | 1,760 | 380180 |
| 46,000 | 41,400 | 11,850 | 8,570 | 1,860 | 380181 |
| 52,000 | 46,800 | 13,205 | 9,925 | 2,105 | 380057 |
Please note:
Firefighting systems must be quoted on a site by site basis. Please send drawings/ requirements to sales@freeflush.co.uk and a member of our team will provide a tailored quote.
