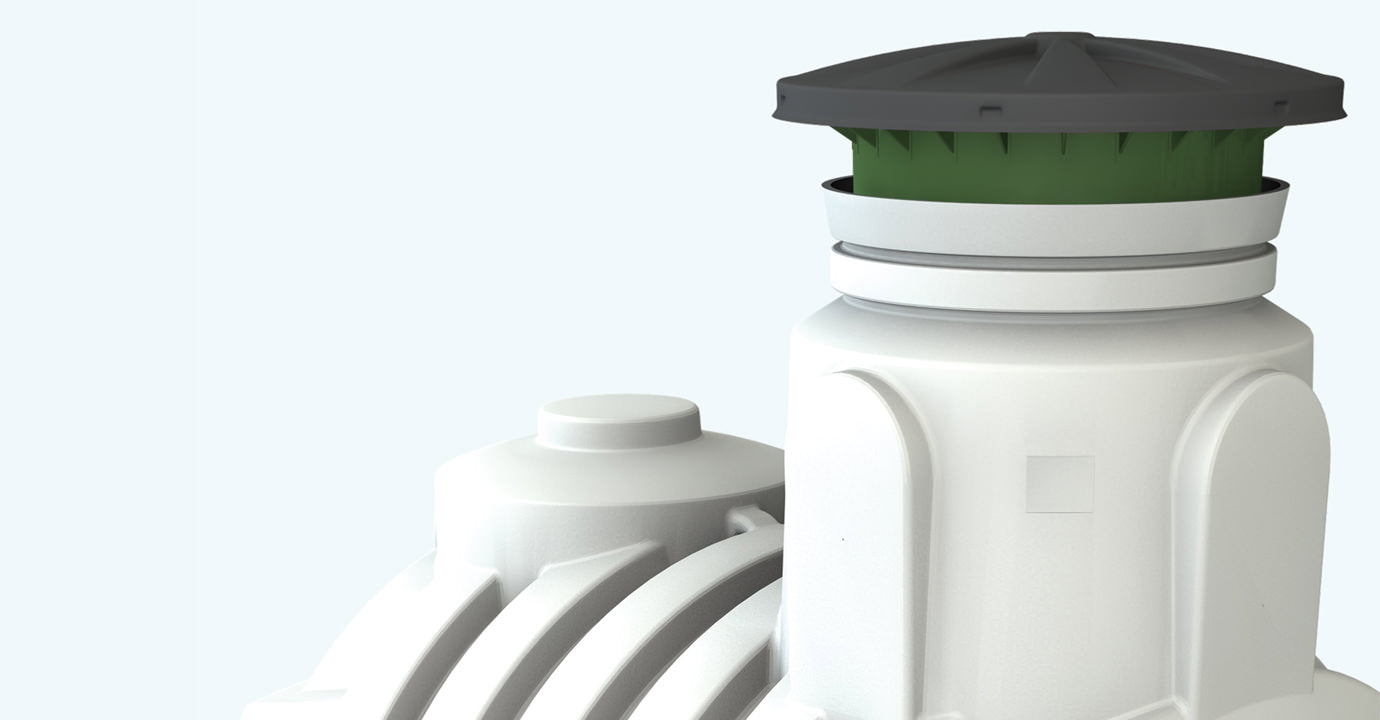

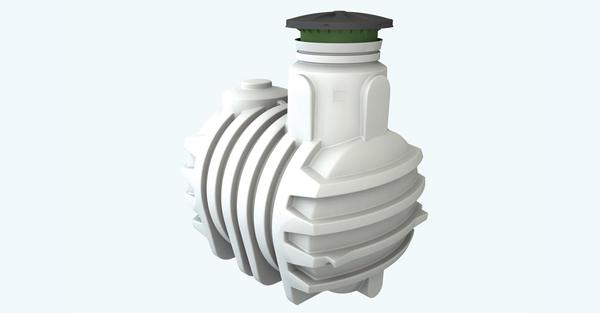

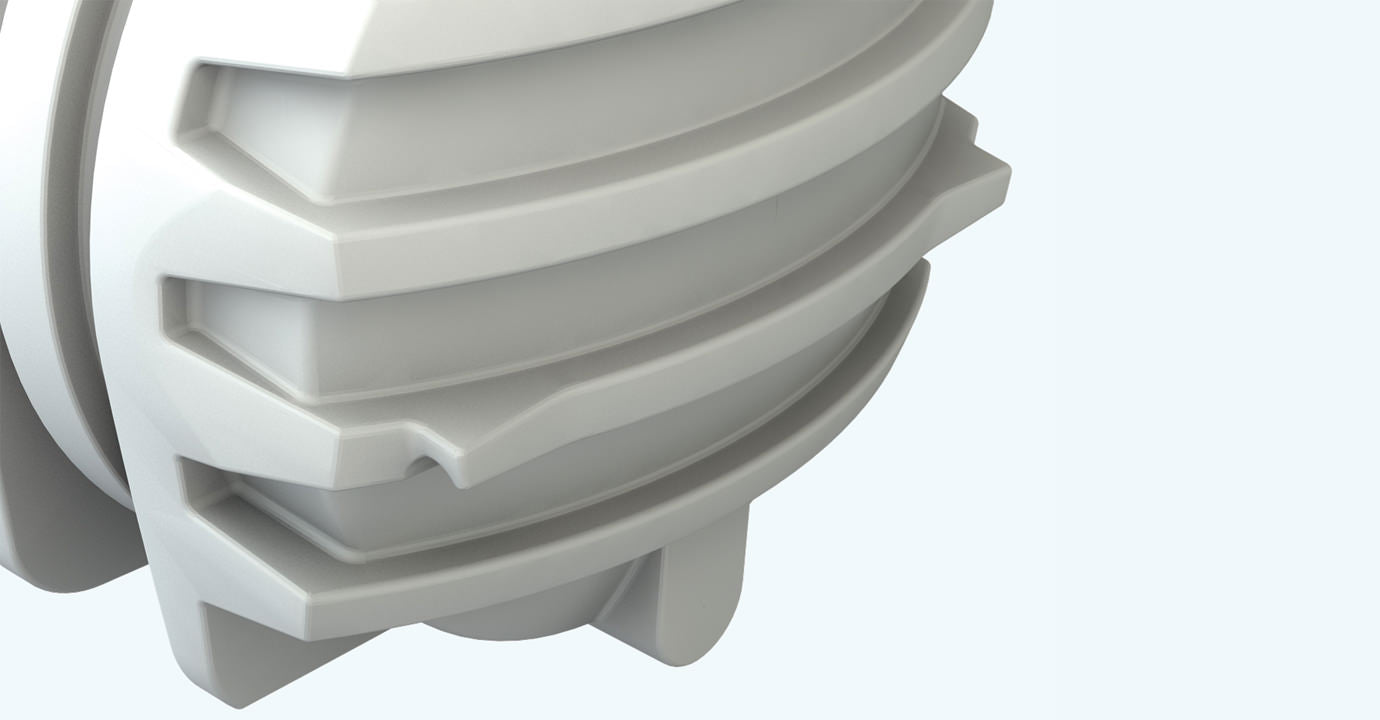

Diamant drinking water reservoir

£1,299.00



  Food-safe tank for storing drinking water

  • Containers made from robust, long-life polyethylene
  • Food-safe design with test certificate in accordance with KTW recommendation
  • Easy to transport, install and quick to fit due to low weight.
  • Easy to clean due to smooth tank interior surfaces
  • To store drinking water



2,200 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
381130 2450 1150 1760 650 125



3,350 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
381131 2450 1400 2010 650 150



4,800 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
381132 2450 1700 2310 650 180



6,500 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
381133 2450 2000 2610 650 260





Technical details

max. earth covering (mm) (without groundwater, vehicle loading) Earth covering with groundwater installation (mm)
1200 800 - 1000
