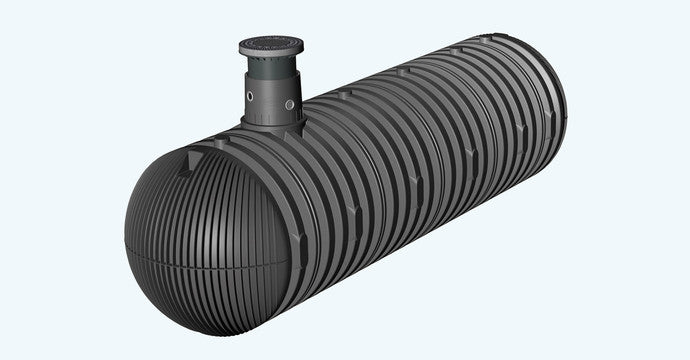

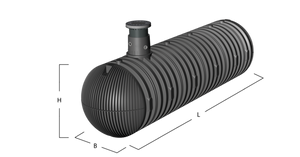

Carat XXL underground tank

£6,249.00
Maximum quantity available reached.

The Carat XXL underground tank has been specially developed for rainwater harvesting and for use as a retention cistern, firefighting water tank, process water tank and septic tank. It is available in sizes from 16,000 to 122,000 l. Suitable for vehicle loading / lorry loading.

Instructions
Rainwater storage tank Carat XXL PDF 9.01 mb

Sizing form/ Tender file
Carat XXL underground tank
PDF | docx

Dimension drawing



Carat XXL 16000L  PDF 705 kb
Carat XXL 22000L PDF 1.51 mb
Carat XXL 26000L PDF 714 kb
Carat XXL 32000L PDF 1.52 mb
Carat XXL 36000L PDF 724 kb
Carat XXL 42000L PDF 1.42 mb
Carat XXL 46000LPDF 733 kb
Carat XXL 52000L PDF 1.43 mb
Carat XXL 56000L PDF 711 kb
Carat XXL 62000L PDF 1.35 mb
Carat XXL 66000L PDF 693 kb
Carat XXL 72000LPDF 1.36 mb
Carat XXL 76000L PDF 698 kb
Carat XXL 82000L PDF 1.44 mb
Carat XXL 86000L PDF 710 kb
Carat XXL 92000L PDF 1.44 mb
Carat XXL 96000L PDF 710 kb
Carat XXL 102000LPDF 1.44 mb
Carat XXL 106000L PDF 710 kb
Carat XXL 112000L PDF 1.44 mb
Carat XXL 116000L PDF 710 kb
Carat XXL 122000L PDF 1.44 mb



  • Flexibility and stability are perfectly combined
  • Suitable for vehicle loading / lorry loading
  • No need for heavy load transport on trucks up to the size of 76,000 ltrs
  • Secure investment thanks to the market leading 15-year warranty!
  • Lorry bearing up to 40 t
  • Groundwater-stable
  • Lighter than equal tank made of concrete or steel
  • Numerous DN 100/150/200 connection surfaces

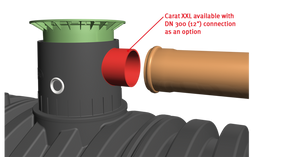

  • Optional DN 300 connection

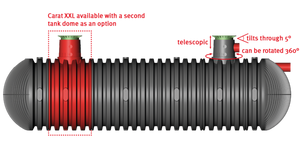

  • Optional second tank dome

16,000 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
380001 4660 2500 3160 650 805


22,000 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
380000 6145 2500 3160 650 1015


26,000 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
380002 7045 2500 3160 650 1150


32,000 L

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
380003 8530 2500 3160 650 1360


-with second dome

Technical details

max. earth covering (mm) (without groundwater, vehicle loading) max. axle load (t) max. vehicle weight (t)
1500 8 3,5 / 40
Earth covering with loading capacity (mm) Earth covering with groundwater installation (mm)
800 - 1500 800 - 1500
