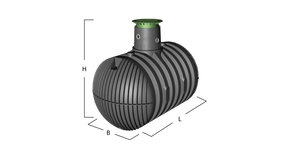

Carat XL SuDS rainwater attenuation underground tank

£2,999.00
Maximum quantity available reached.

The Carat XL underground rainwater attenuation tank is an exceptionally versatile tank. It is available in sizes 8,500 and 10,000 l, combined with a lid of choice to suit requirements.

The tank is perfect for where a large storage volume is required and acts as an SuDS attenuation tank when fitted with a regulator device.

The tank can be pre fitted with flow regulation device with varying flow output as specified and so represents a plug and play attenuation solution.

Please get in touch with your stormwater attenuation requirements and we can calculate your storage requirements.



  • Optimal tank geometry and statics due to CAD product development – equals highest stability
  • Unique fitting accuracy of the components
  • Consistent quality due to constant production monitoring
  • Vehicle or lorry-bearing (combined with Telescopic dome shaft with cast iron lid or TRUCK)
  • Groundwater stable up to the middle of the tank thanks to extremely stable construction
  • Secure investment thanks to the market leading 15-year warranty!
  • Can be expanded as required

8,500 l

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
370005 3500 2040 2695 650 380



10,000 l

order no. Length (mm) Width (mm) Height (mm) Inner Ø dome shaft (mm) Weight (kg)
370006 3520 2240 2895 650 455



Technical details

max. earth covering (mm) (without groundwater, vehicle loading)

max. axle load (t) max. vehicle weight (t)
2000 8 3,5 /12
Earth covering with loading capacity (mm) Earth covering with groundwater installation (mm)
800-2000 800 - 1800
