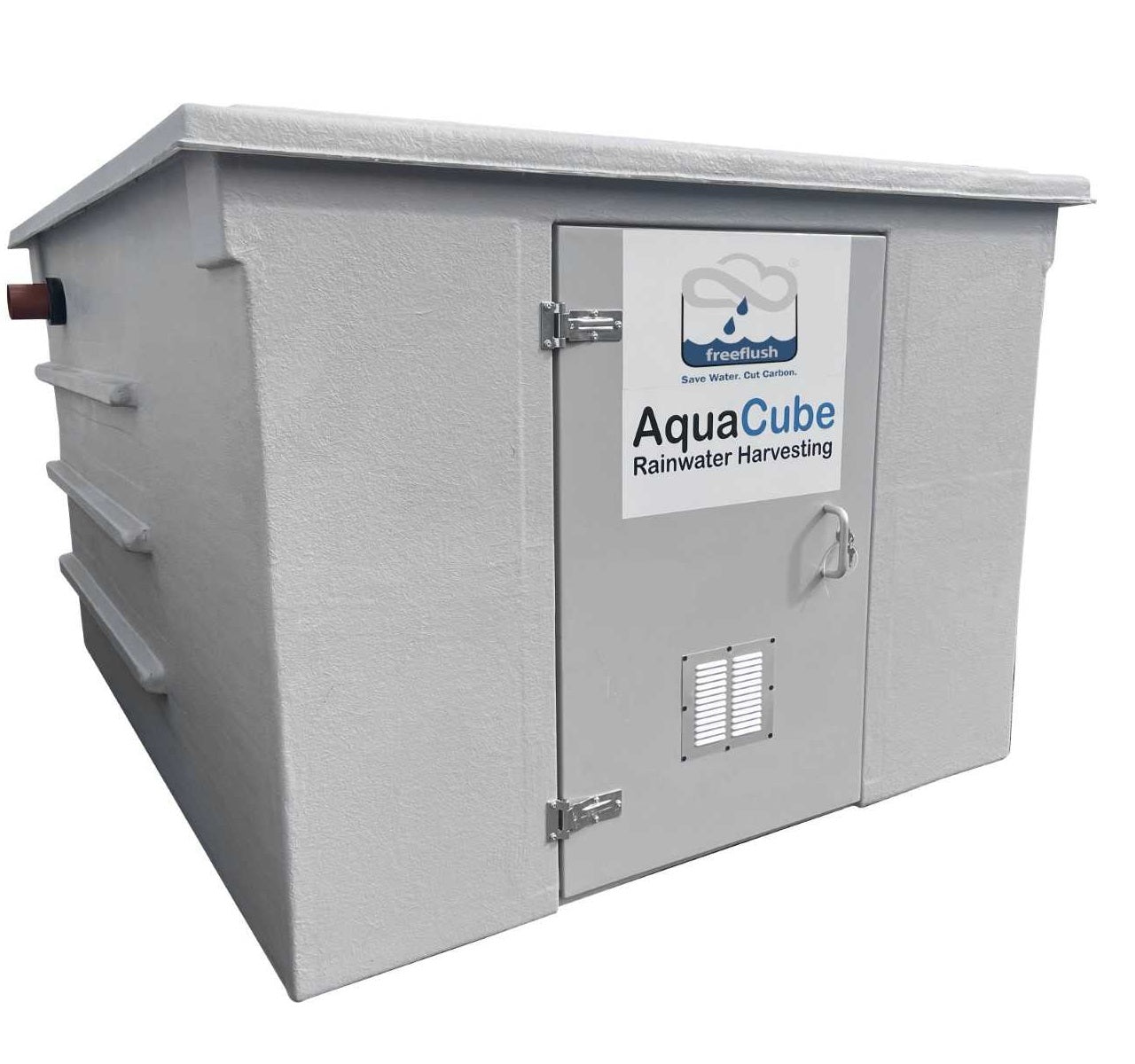

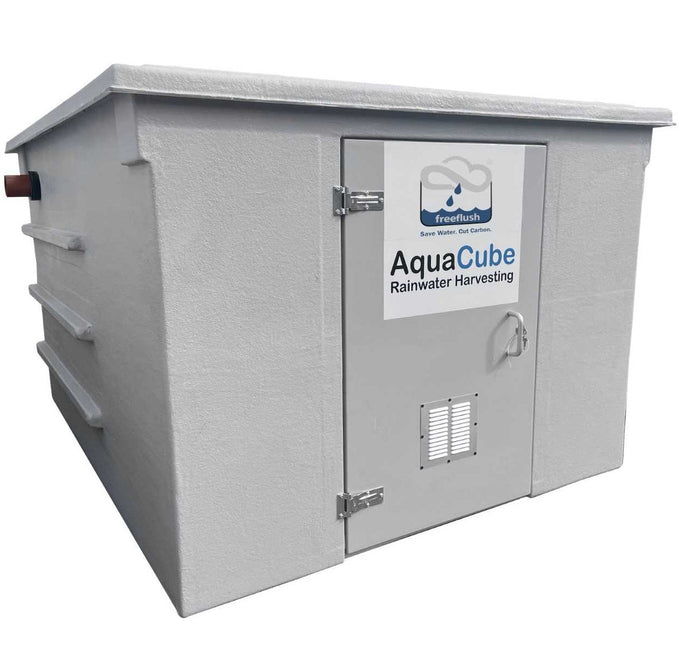

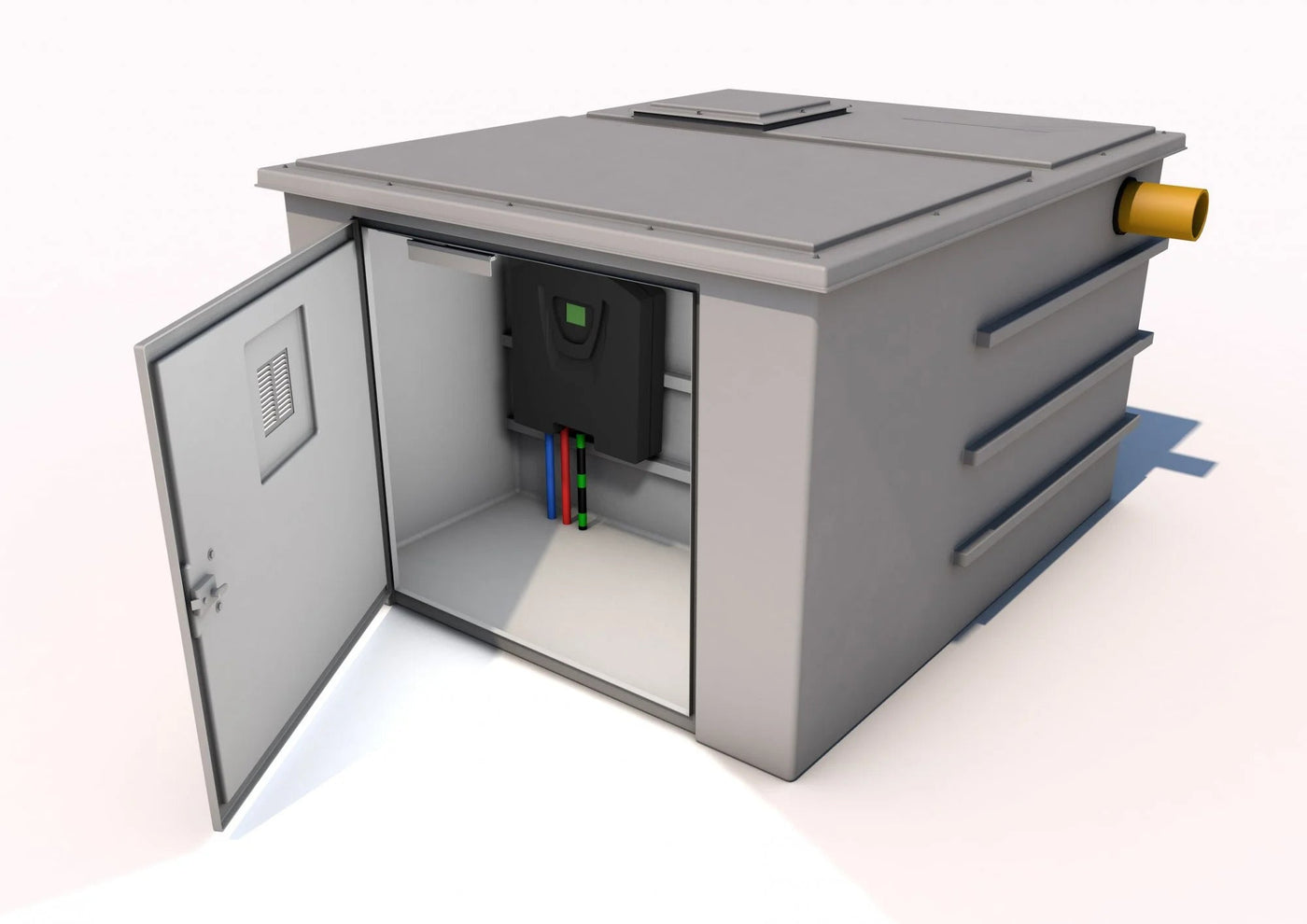

The AquaCube has been designed to provide a self-contained, pre-assembled rainwater harvesting system that comes in two different sizes, 3375 litres and 4500 litres with larger options available upon request.
The system comes with all pumps, filters, and controls in one unit. This allows for a simple and straight forward installation with true ‘plug and play’ functionality for your rainwater harvesting system.
Our AquaCube system can be used across various vertical markets and multiple building types. The system is perfectly suited for both new builds and existing retrofit site
- Toilets and Urinals
- Vehicle and general cleaning

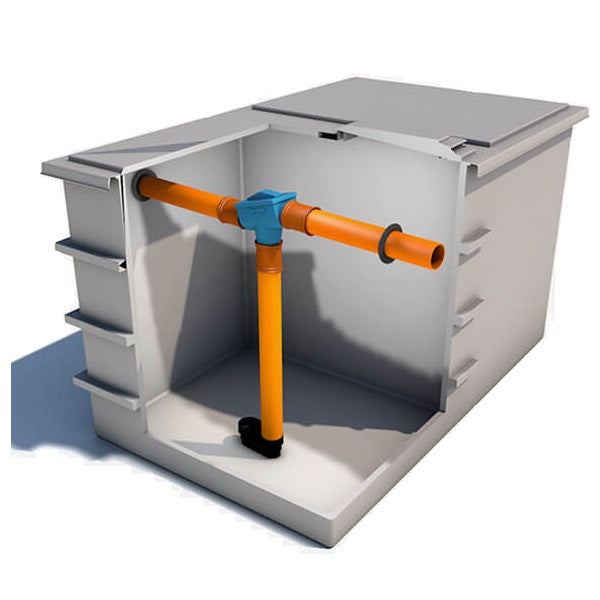

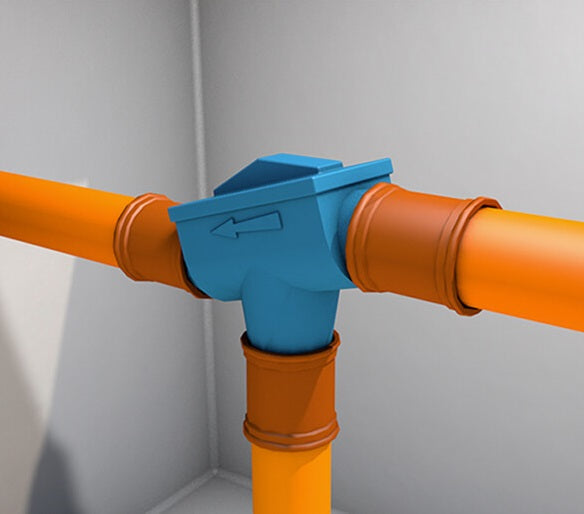

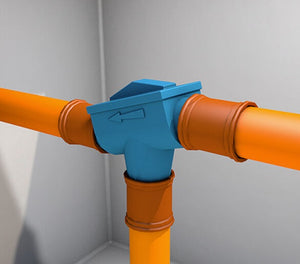

- Equipped with anti-odour siphon
- Auto checking of valves every 24 hours
- Auto changing of water every week
- Wall mount bracket
- Water level sensor with 20m cable
- Rainwater is used as priority over mains
- Pressure and flow control
- Designated terminal area
- Full “start-stop” system
- LCD panel with fault reporting
- Incoming rainwater supply from the roof
- The tank overflow should be fitted to a soakaway or storm drain.
- Mains electric supply
- Mains water supply for system top-up in low rainfall periods
- Pressurised rainwater from the system booster pump feed.
- Control unit emergency warning pipe should be fitted so overflows are visible.

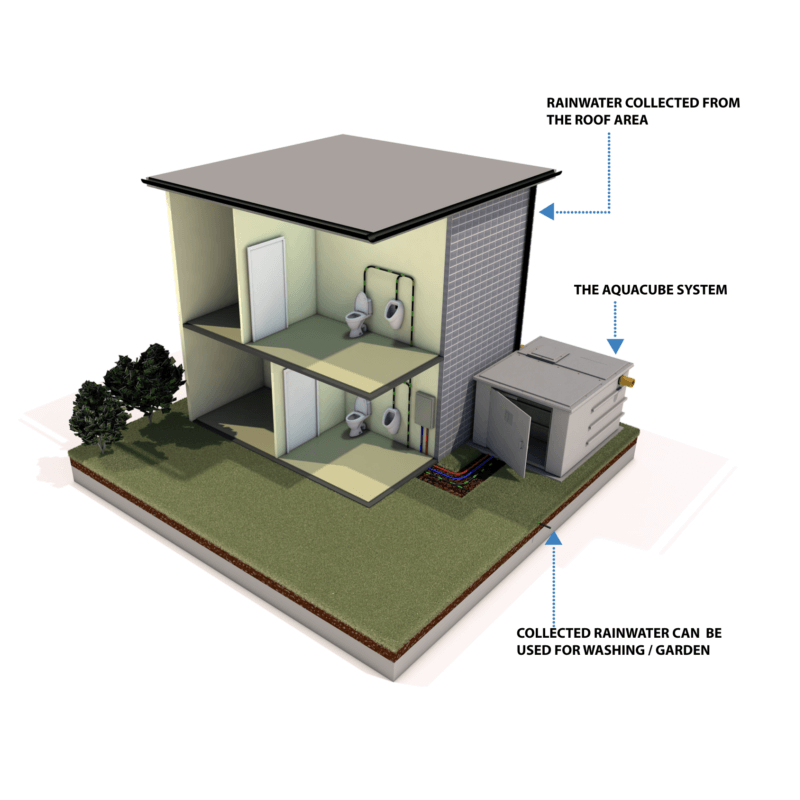

The AquaCube should be installed externally and within close proximity to your chosen building. Ideally the AquaCube should be close to all down pipes so that the water from the roof area can be easily collected.
The AquaCube should be installed on a level concrete foundation which is capable of holding the full weight of the system when full with water.
Intelligent Pump & Controller:
The control unit is designed as plug-in, compact system for use in domestic and light commercial applications.
The control unit has an integrated 7 litre break which is in accordance with EN1717 standards. The system comes with an integrated self-priming centrifugal pump with automatic pressure control and a motor-controlled ball valve that switches between rainwater and drinking water operation. The system is compact and whisper quiet as it is
equipped with a sound-proof EPP housing. The complete system is fully KIWA certified.

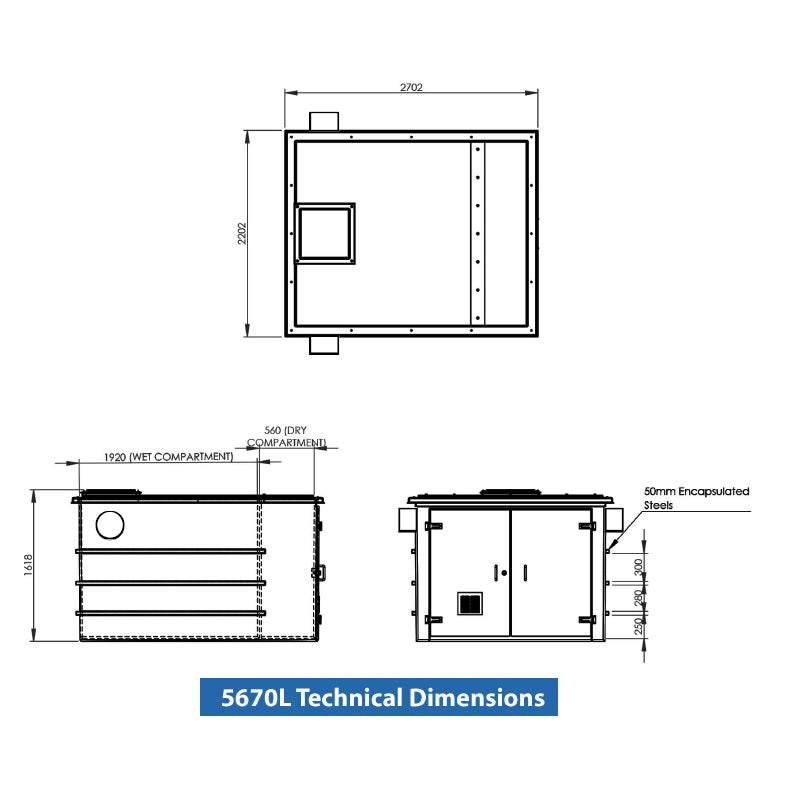

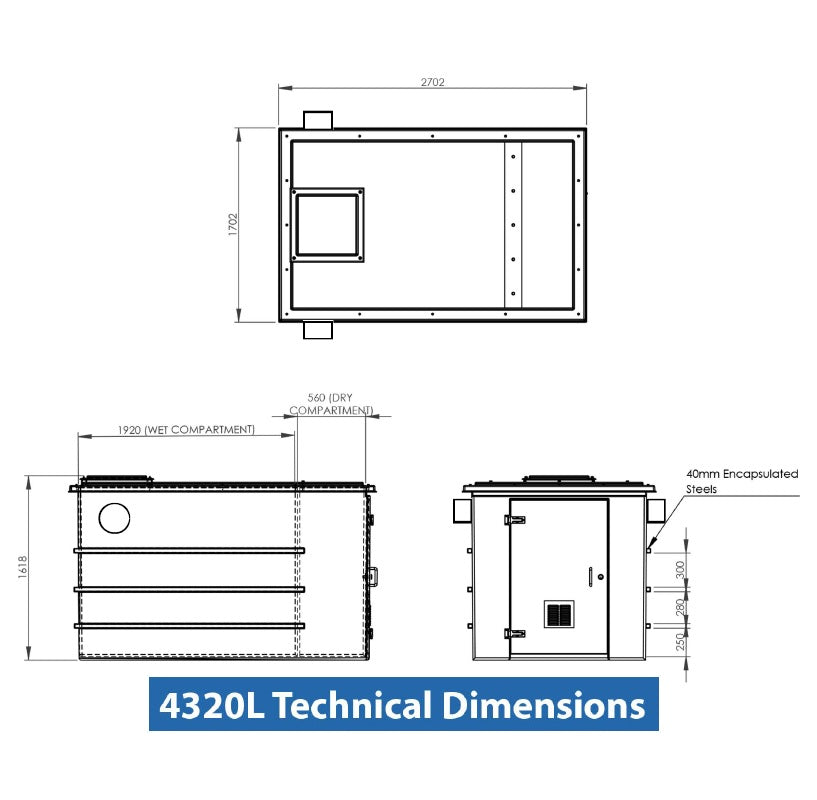

|Dimensions (mm)||1500 H x 1500 W x 2500 L||1500 H x 2000 W x 2500 L|
|Rainwater Inlet Size||110 mm||110 mm|
|Rainwater Overflow Size||110 mm||110 mm|
|Voltage||220 - 240v||220 - 240v|

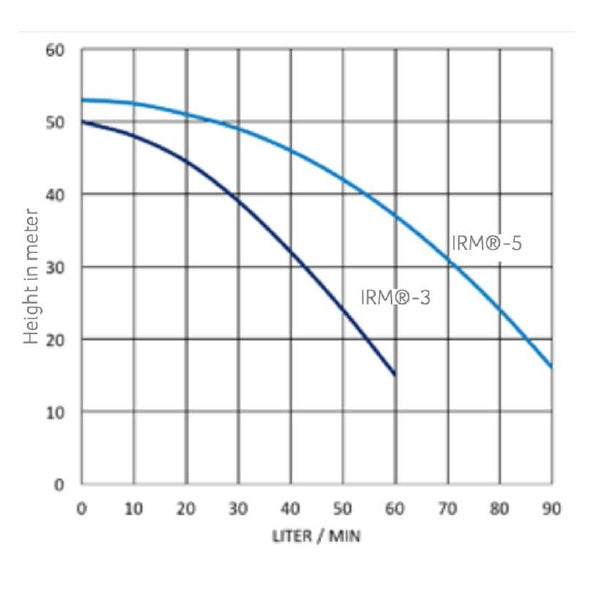

|Pump Type||AquaProf 40/50||AquaProf 40/50|
