AQUA Pumping Station Range 190l, 300l, 450l, 600l, 900l, 1200l and 1700l
- Final Effluent from Sewage Treatment Plants,
- Drainage of cellars & basements e.g., Sinks, Showers, Kitchens & Dishwashers
- Stormwater and SuDS applications

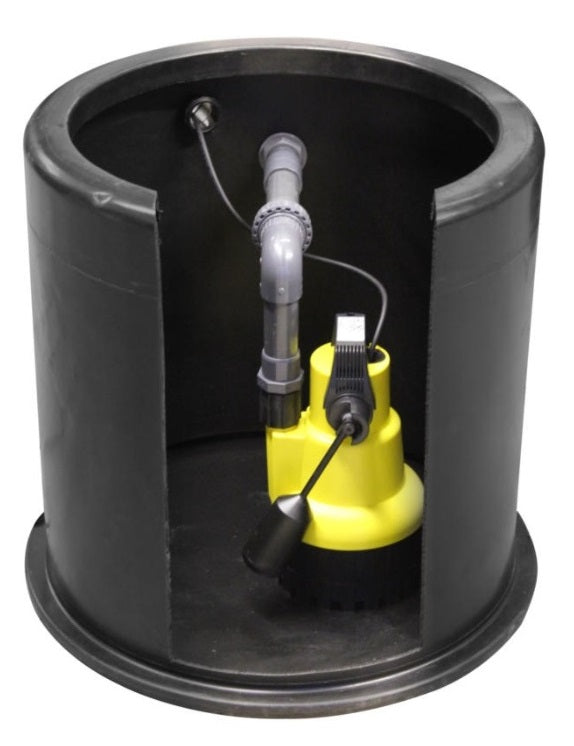

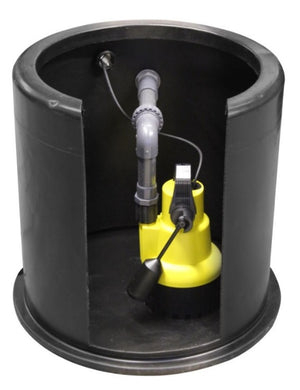

A packaged pump station is used when gravity drainage on site cannot be achieved. The AquaTank is suited for clean, dirty or slightly polluted water. This unit has been designed to pump water from a septic tank or treatment plant. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The system comes in four different depths, 635, 1000, 1500 and 2000mm. The units are available from stock. A high water alarm is available if required. The AquaTank Pumping Station comes with a submersible pump with 10mm solid handling for peace of mind.
Pump features
- Polypropylene plastic body
- 10mm solid handling capacity
- Coolant filled motor.
- Mechanical seal.
- 10 Meter cable.

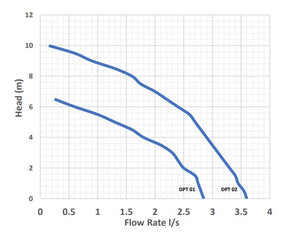

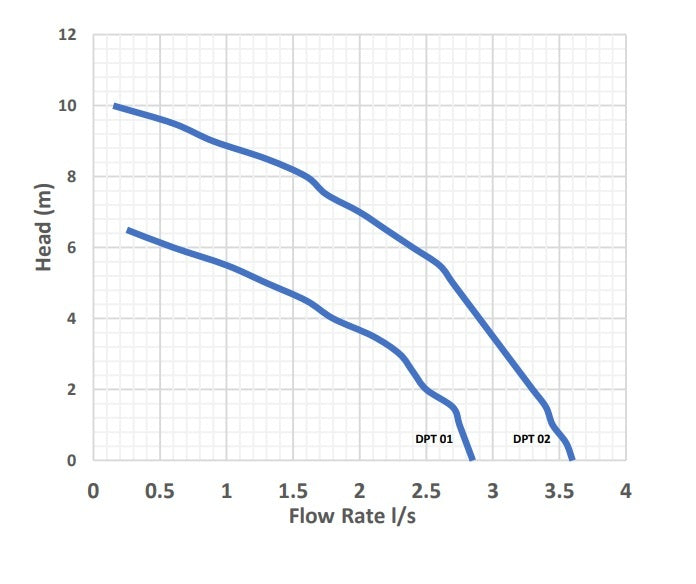

- Max 6 Meter lift. (See pump curve for more details and Twin pump arrangement)
- Max flow 2 L/sec (See pump curve for more details and Twin pump arrangement)
- Float switch as standard.
Tank Features
- Polyethylene tank.
- 190L, 300L and 450L, capacity.
- Screw down lid (Pedestrian rated)
- 1 x 110mm inlet seal to allow inlet to be drilled on site.
- 40mm cable duct.
- 1¼"' internal pipe work
- 1¼" non-return valve
- 1¼" quick release coupling
- 1¼" cable duct
Included
- KSB Asma Drainer 301 Pump

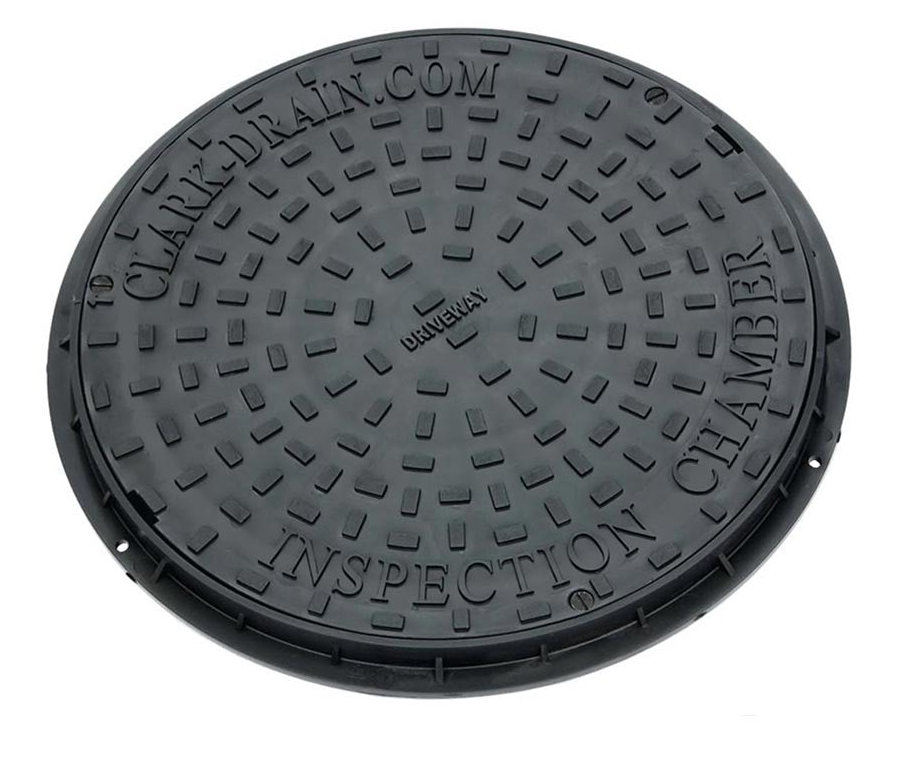

- 450mm dia Pedestrian rated cover (double seal)
- Soft close Non return valve
- Internal PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
Options

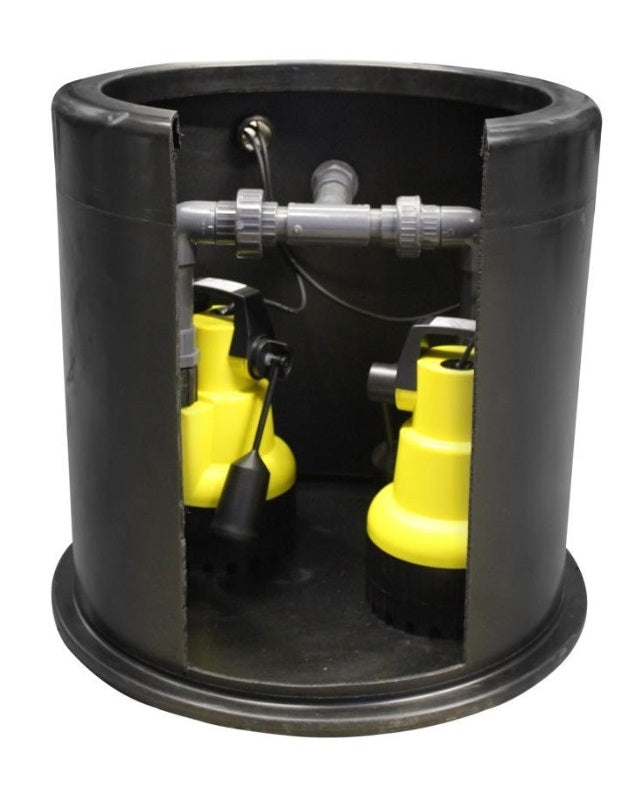

- Single or twin pump
- Storage requirement: 190 litres, 300 litres, 450 litres, 600 litres, 800 litres, 1200 litres, 1700 litres

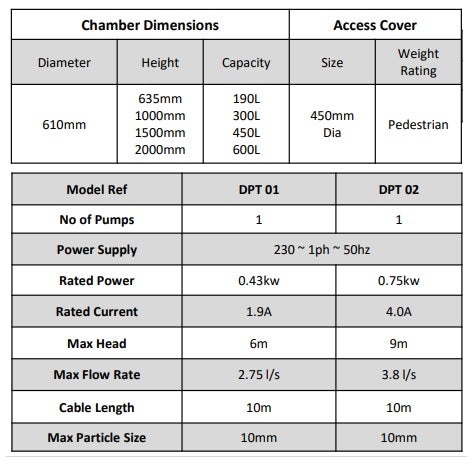

Dimensions
Capacity (L) | Depth (mm) | Ø (mm) |
190 |
635 | 610 |
300 | 1000 | 610 |
450 | 1500 | 610 |
600 | 2000 | 610 |
800 | 1000 | 1000 |
1200 | 1000 | 1500 |
1700 | 1000 | 2000 |
Aqua Micro 190l Technical Drawing
Aqua Micro 300l Technical Drawing
Aqua Micro 450l Technical Drawing
Aqua Micro 600l Technical Drawing
Aqua Micro 800l Technical Drawing
Aqua Micro 1200l Technical Drawing
Aqua Micro 1700l Technical Drawing
