FlowBrake SuDS Attenuation Tank Floating Outflow Regulator with strainer

Size

£59.00

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

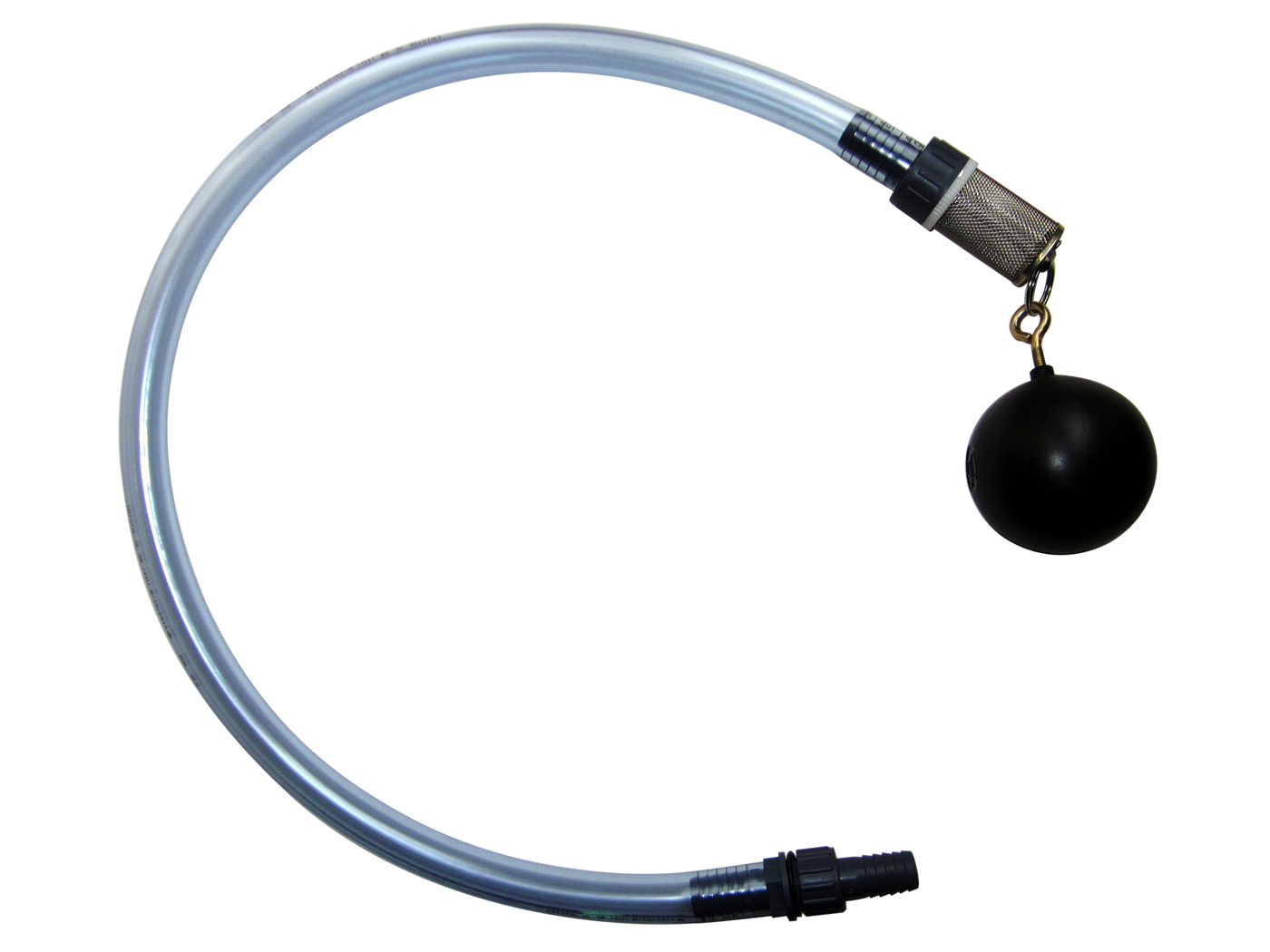

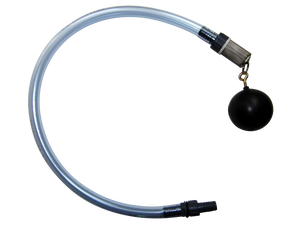

FlowBrake^TM fixed head orifice SuDS flow regulator with strainer.

If you require a SuDS flow regulator with an open orifice please see this product.

This product is suitable were there is no or low upstream filtration.

Turn any tank into an attenuation tank using this smart device.

The floating intake ensures there is a fixed level of water between the top surface with the tank and the intake thus ensuring a constant discharge.

The float position also ensures suspended materials from tank water surface do not enter any soakaway structure or the downstream surface water or foul water system. Typically these systems will have a primary filter upstream and so blockage at the inlet regulator is not a risk.

The SuDS floating outflow regulator comes complete in two varieties:

light duty (3/4" hose, 90mm float, 1m hose, 3/4" BSP male and barbed outlet) 0.25 l/s
medium duty (1" hose, 150mm float, 1.5m hose, 1" BSP male outlet) 0.5 l/s.

This device provides the perfect solution to satisfy a planning condition and building control.
