Oriflo Flow Control 600mm ø Chamber P Series

£849.00
Maximum quantity available reached.

**Flow rate and head must be provided via email upon purchase**

The Oriflo range is a series of Orifice Flow Control Chambers accommodating a range of flow rates

600mm diameter, pre-assembled flow control chamber, delivered ready to install

This model has a rotational moulded chamber base with 160mm, 225mm or 300mm main channel socket connections including two further 110mm, 160mm or 225mm side inlets at 90°, 270° from the outlet at 0°. Side inlets are supplied as blanked ends that can be used as required

This does not come with a lid

Optional Accessories

Access Cover

Suitable Lid

  • 600ACSB125* - Access Cover 600x600mm Square Cover B125 Loading

Pipework

  • Main Channel Pipework: 160mm Single Wall EN 1401 or 225mm or 300mm Twinwall - Outlet at 0° and Inlet at 180°
  • Optional Side Inlets: 110mm or 160mm Single Wall EN 1401 or 225mm Twinwall - Inlets at 90° and 270°

Compliance

  • Design & Construction Guidance - April 2020. Section C7.12 - Flow Control Device
  • Building Regulations - Part H1
  • New DCG ( Design and Construction Guidance) states; In Adoptable applications, this type of flow control device, is designed with a minimum 50mm orifice diameter

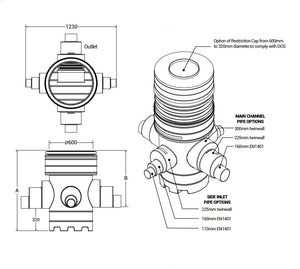

Product Code Pipework Options
Ø (mm) 		Depth
A (mm)		 Inlet Invert
B (mm)		 Approx Weight
(Kg)
OFCP600/1 See Fig 1 1075 755 19
OFCP600/1.5 See Fig 1 1500 1180 30
OFCP600/2 See Fig 1 2000 1680 39
OFCP600/2.5 See Fig 1 2445 2125 47
