Oriflo Protected Flow Control 1050mm Ø Chamber C Series

£2,289.00
Maximum quantity available reached.

**Flow rate and head must be provided via email upon purchase**

The Oriflo range is a series of Orifice Flow Control Chambers accommodating a range of flow rates

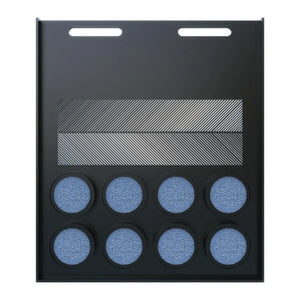

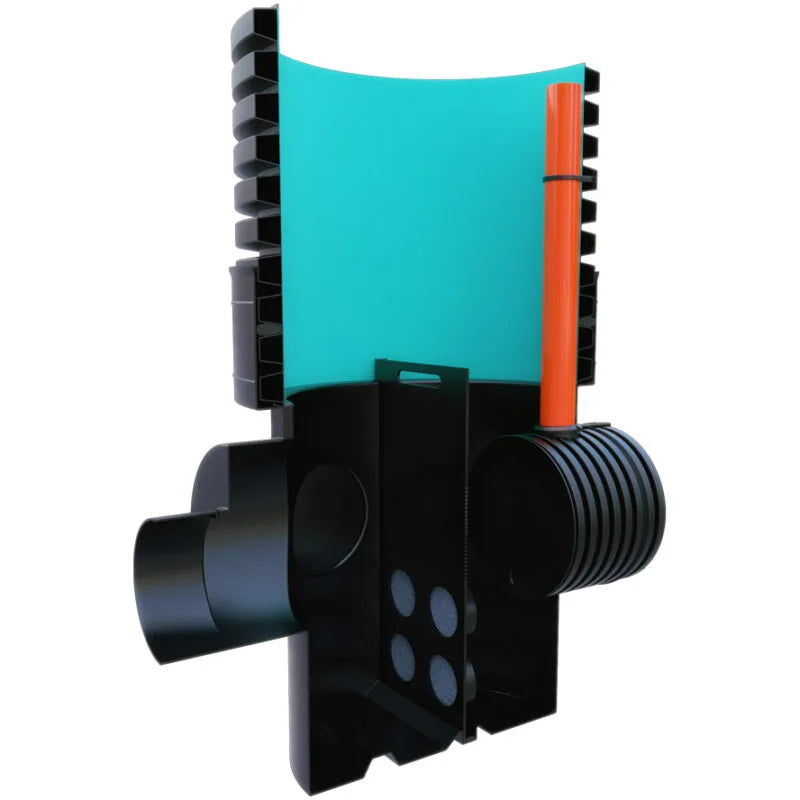

Within the Oriflo range we have our protected orifice chambers that features a 100% recycled thermoplastic block (blok).  This blok is installed into our rotational moulded chambers forcing all flow through the blok before reaching the outlet, filtering out Total Suspended Solids including silt up to 30μm (0.03mm)

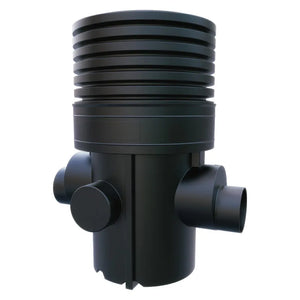

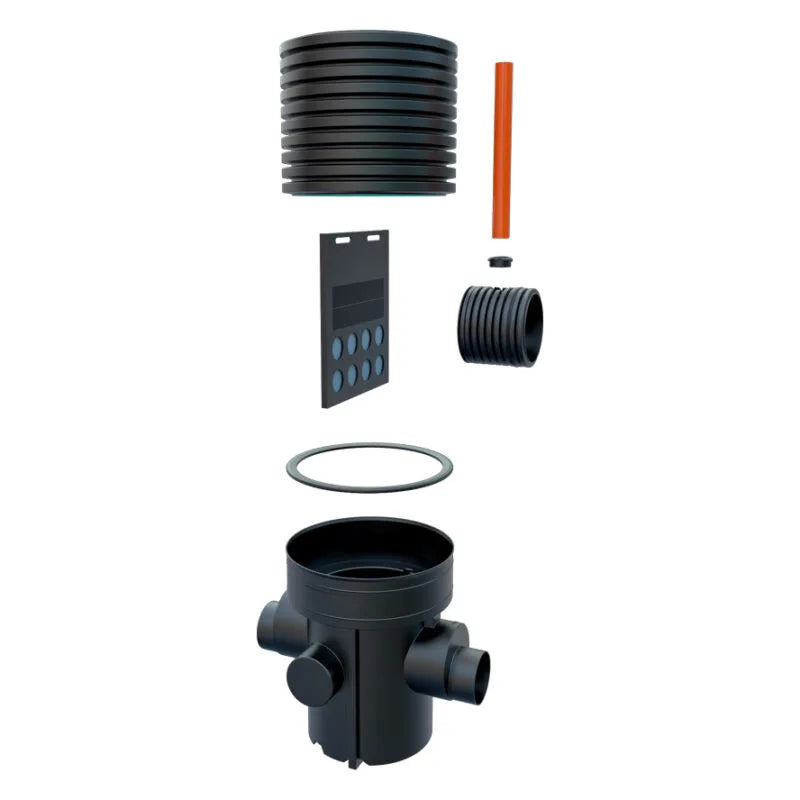

1050mm diameter, pre-assembled flow control chamber, delivered ready to install

This model has a rotational moulded chamber base with 300mm or 450mm main channel socket connections including two further 300mm side inlets at 90°, 270° from the outlet at 0°. Side inlets are supplied as blanked ends that can be used as required

This model has a recommended inspection, emptying and cleaning schedule depending on usage

Compliance Documents

  • Design & Construction Guidance - April 2020. Section C7.12 - Flow Control Device
  • Building Regulations - Part H1
  • New DCG ( Design and Construction Guidance) states; In Adoptable applications, this type of flow control device, is designed with a minimum 50mm orifice diameter

Specification

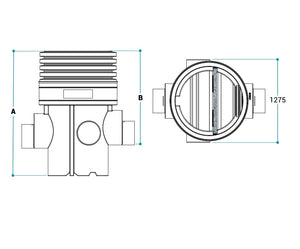

Product Code Pipework Options
Ø (mm) 		Depth
A (mm)		 Inlet Invert
B (mm)		 Approx. Weight
(Kg)
OFCC1050/1.5 300-450 TWINWALL 1510 1005 115
OFCC1050/2 300-450 TWINWALL 1930 1425 138
OFCC1050/2.4 300-450 TWINWALL 2350 1845 162
OFCC1050/3 300-450 TWINWALL 2960 2455 194
