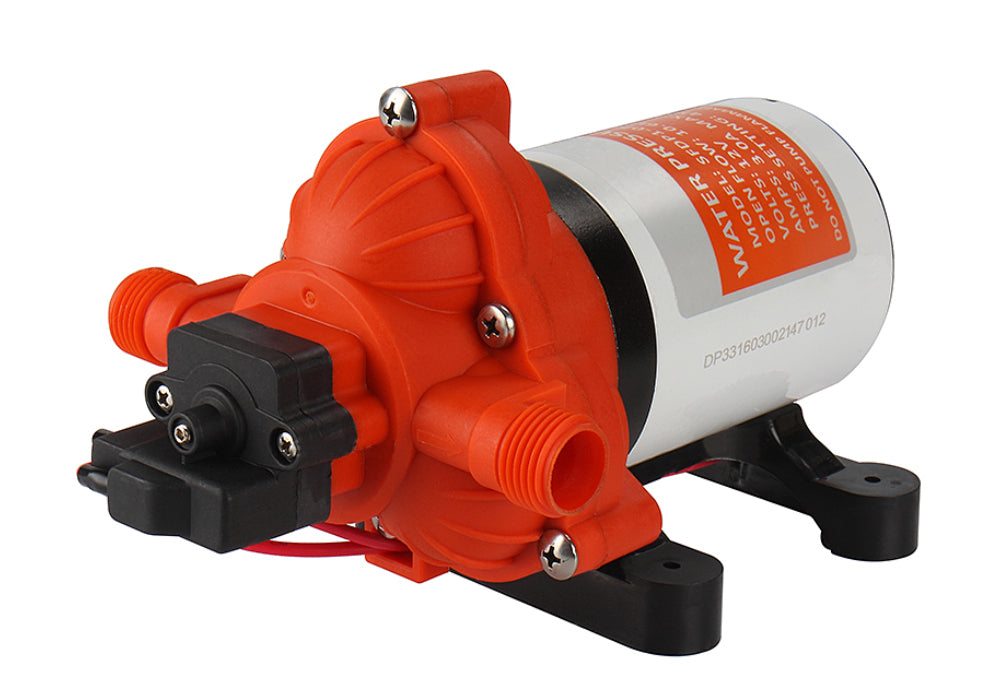

Prestige on demand, automatic pump is a great entry level pump for a range of pump applications. The pressure switch allows flexible and versatile use with minimal fuss.
The pump can deal with the following liquids: Clear water, Rain water, Chlorine water (pool water) and is suitable for irrigation, rainwater harvesting and rapid water transfer. This pump is not suitable for drinking water.
The pump is suitable for surface mounting either internally or externally within an weather proof enclosure. If an enclosure is required consider the Prestige pump enclosure which is sized to receive the Prestige 12v pump.

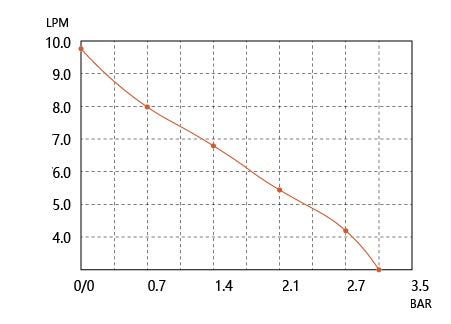

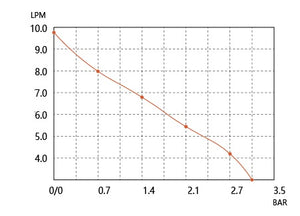

It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 11.6 litres per minute and is capable of self-priming up to 2m, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when a valve is opened and closed.
Features and benefits
- On-demand use

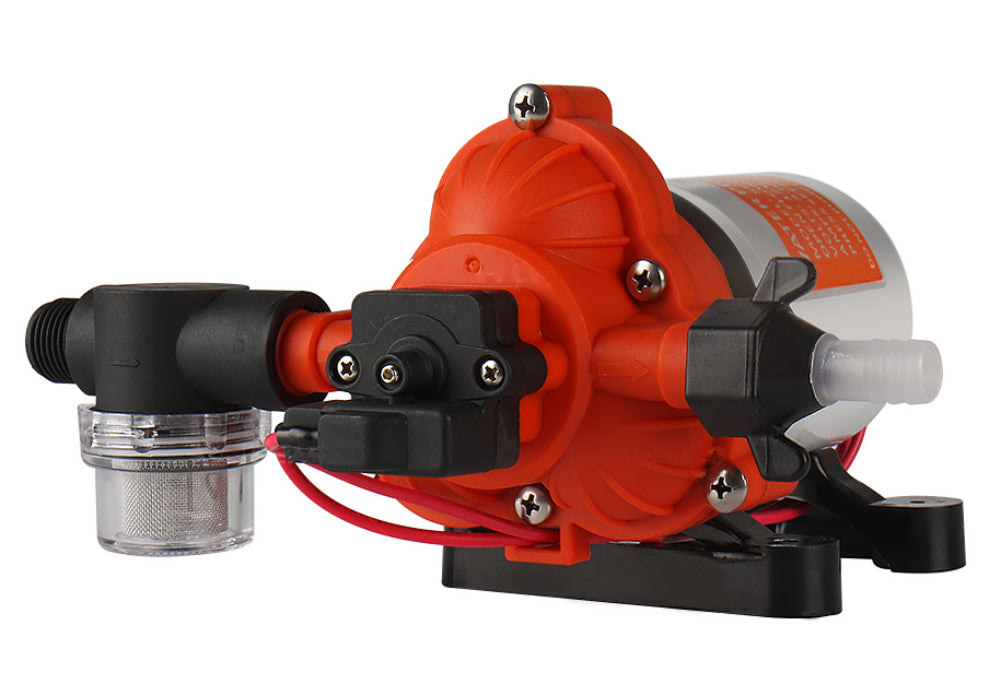

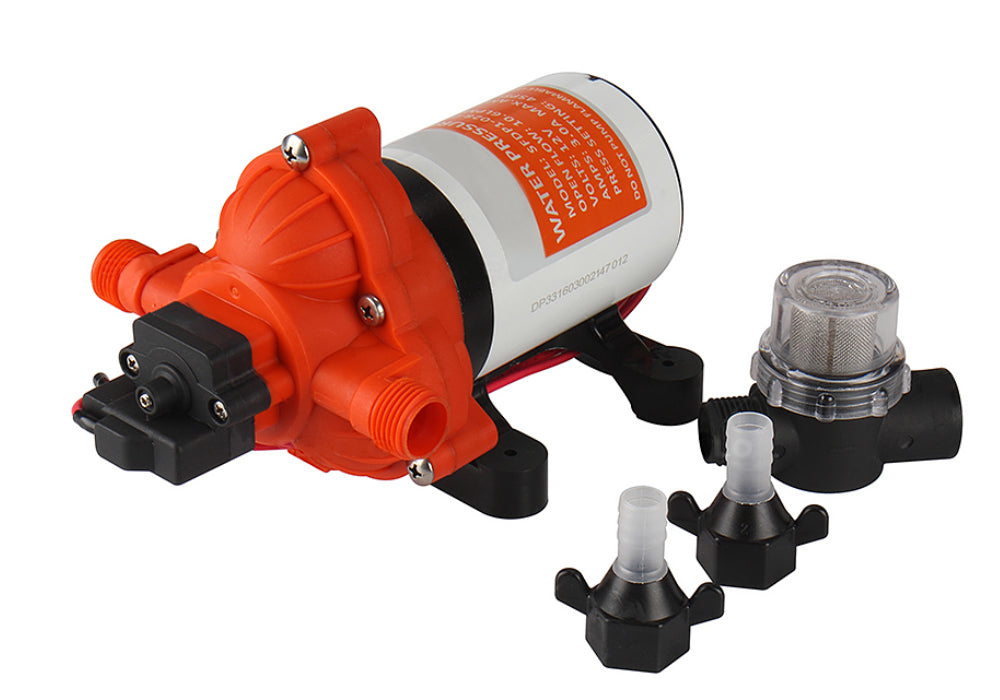

- debris filter included
- Capable of supplying 1-2 fixtures
- Adjustable pressure switch
- Continuous Duty&Run dry safe - Self priming
- 16AWG,4.5＂long Leads
- 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards

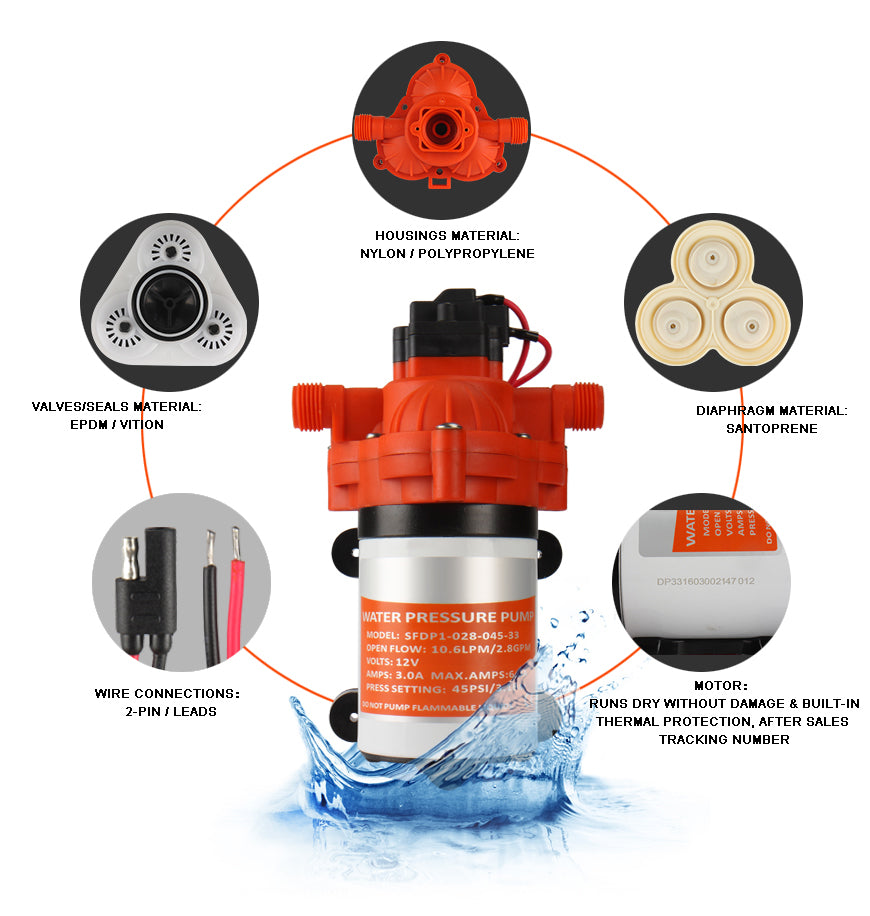

|Type||3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry|
|Control Type||Pressure switch|
|Max Recommended Temperature||60° C（140° F）|
|Priming Capabilities||6 feet (1.8 m) suction lift|
|Re-start Pressure||Shut-off Pressure 45 PSI : 35 PSI ±5 PSI (±0.3 bar)|

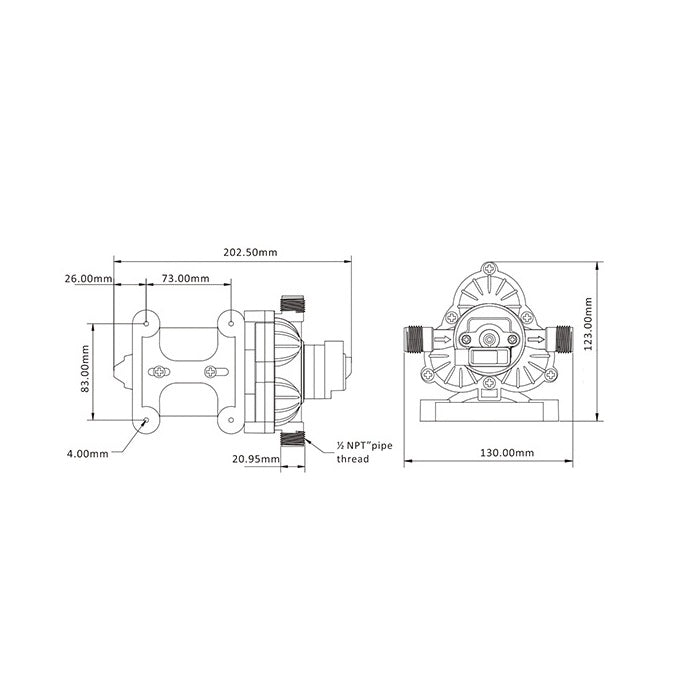

|Inlet/Outlet Ports||1/2"-14 MNPT|
|Weight||4.2 lbs (1.9 kg)|
|Leads||16 AWG, 13" (33 cm) long with 2-Pin connector / Leads|
|Max.Amp Draw||8.0 A|
