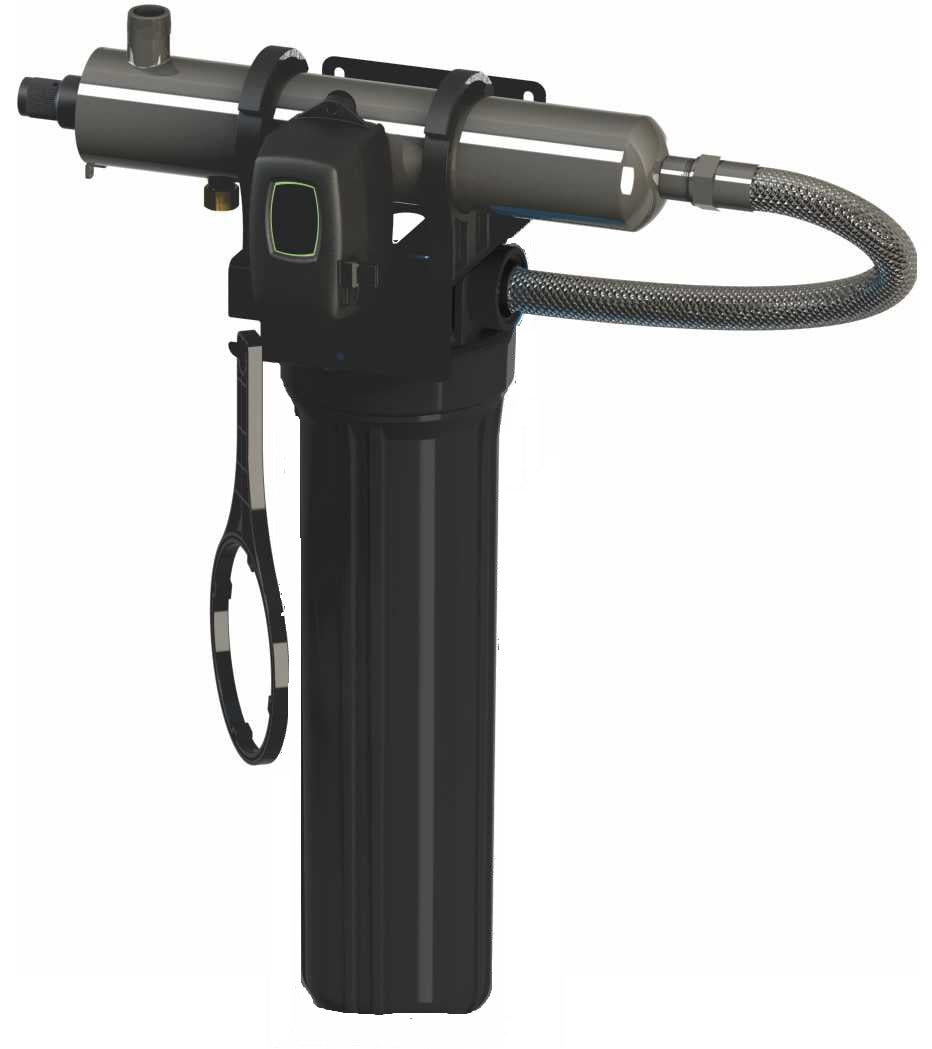

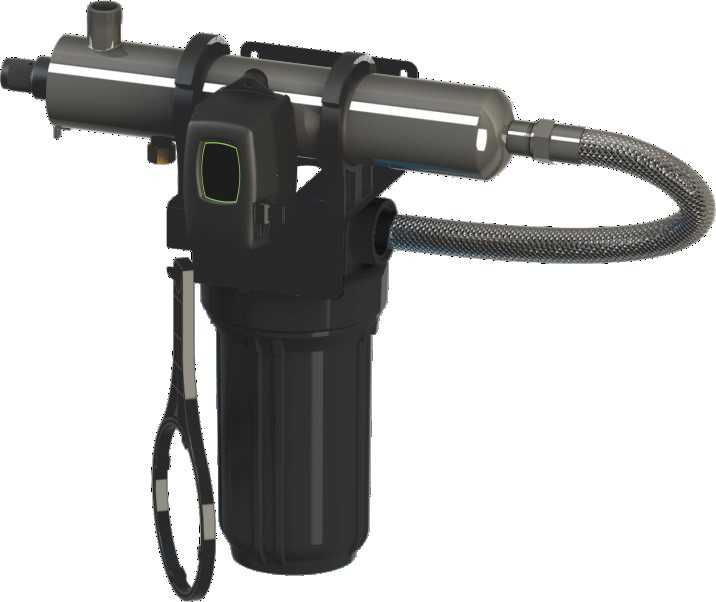

LUMINOR’s new line of rack-mounted UV/filtration systems offer the convenience of an all-in-one package making installation a simple “in & out” connection.
Designed to effectively treat flow rates of 30.3 & 56.8 lpm, LUMINOR’s rackmounted UV’s provide the required 5 micron pre-treatment with the option of a full-flow, carbon filter to treat taste and odour. Installation of a UV system has never been easier with an innovative design that allows for feedwater to enter the filters from either the right or left side of the unit.

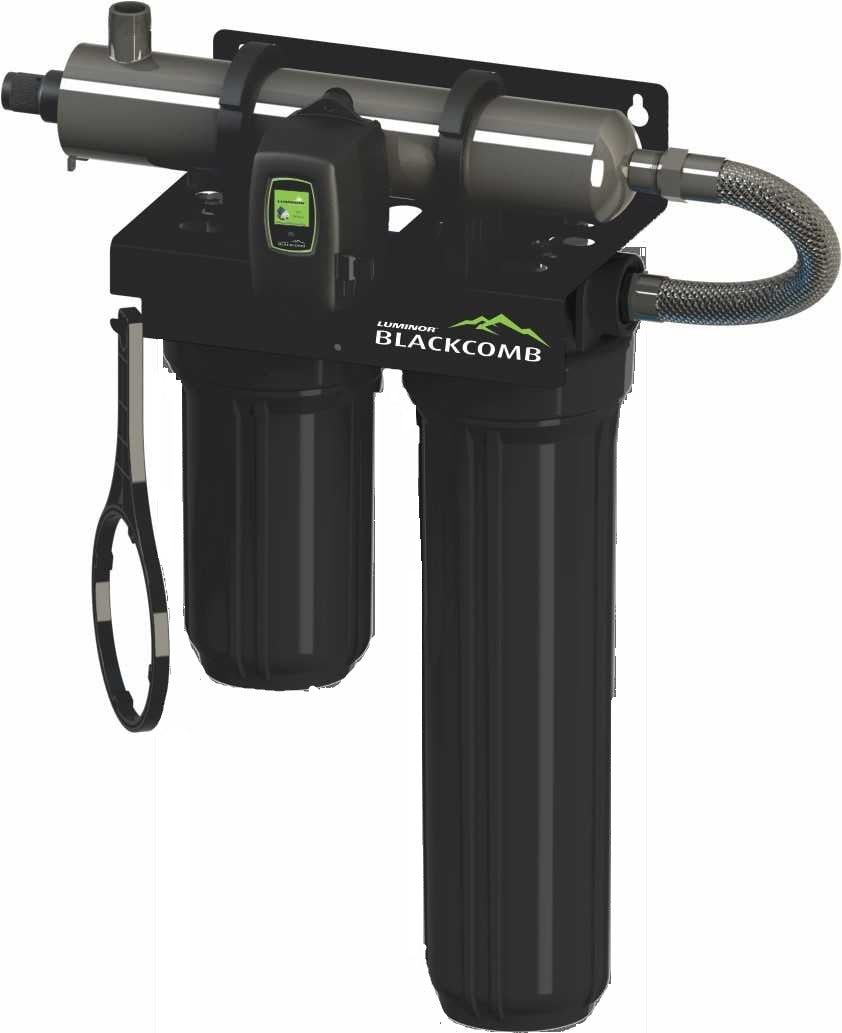

Based on LUMINOR’s groundbreaking modular UV systems, the rackmount UV’s offer the flexibility of being “factory ready” to accept a UV Intensity Module in the future if so desired. The BLACKCOMB plug and play platform has the most advanced residential controller on the market with a colour screen user interface giving a multitude of screens displaying diagnostics, status, warnings.
Features and benefits
- One-piece, 2-sump design for leak free operation, (pressure relief, wrench, and new integral hanging clip included with all systems)
- LED lamp countdown (4.1 variants)
- Controller with Lightlock™ technology for protected lamp sales (5.1 variants)
- Universal mounting configuration (left or right access)
- NSF component listed filtration cartridges (included with systems)
- “Future-proof” expandability port for future upgrades and options
- Axial flow, 316L stainless steel polished reactors, fully polished, designed & manufactured to ASME pressure vessel standards
- Reliable, industry proven, coated UV lamps, (9,000 hour life on LB4/5 series and 10,000 hour life on LBH4/5 series)
- Full customization available as an option (language, home screen, phone, QR codes, etc.)
(30mJ/cm2 @ 95% UVT)
|1st Filter House||5 micron sediment
|5 micron sediment
|5 micron sediment
|5 micron sediment
|2nd Filter Housing||N/A||High-capacity Carbon
|Port Size||1" MNPT|
|Plug Type||British Standard, BS 1363, “3” suffix|
|Lamp Watts||20 (standard-output lamp)||45 (high-output lamp)|
|Power (watts)||23 (21 @ 230V)||57 (48 @ 230V)|
|Max Current (amps)||1|
|Chamber Material||Polished 316L stainless steel, A249 pressure rated tubing|
|Reactor Dimensions||3.5 x 20.0" (8.9 x 50.8 cm)|
|Controller Dimensions||17.2 x 9.2 x 10.2 cm (6.8 x 3.6 x 4”)||21.7 x 10.8 x 10.2 cm (8.6 x 4.2 x 4”)|
|Operating Pressure||0.7-8.3 bar (10-120 psi)|
|Operating Water Pressure||2-40° C (36-104° F)|
|UV Monitor||Optional (requires additional UV sensor module) (RS-B3.5 on LB5 units & RSHO-B3.5 on LBH5 units)|
|Solemoid Output||YES (but requires optional solenoid module) (MOD-SOL)|
|Dry Contacts||YES (but requires optional remote alarm module) (MOD-RAM)|
|40-20mA Output||YES (but requires optional 4-20mA module) (MOD-420)|
Lamp Change Reminder
(Audible and Visual)
|Lamp Out Indicator||Yes|
